Product Description:

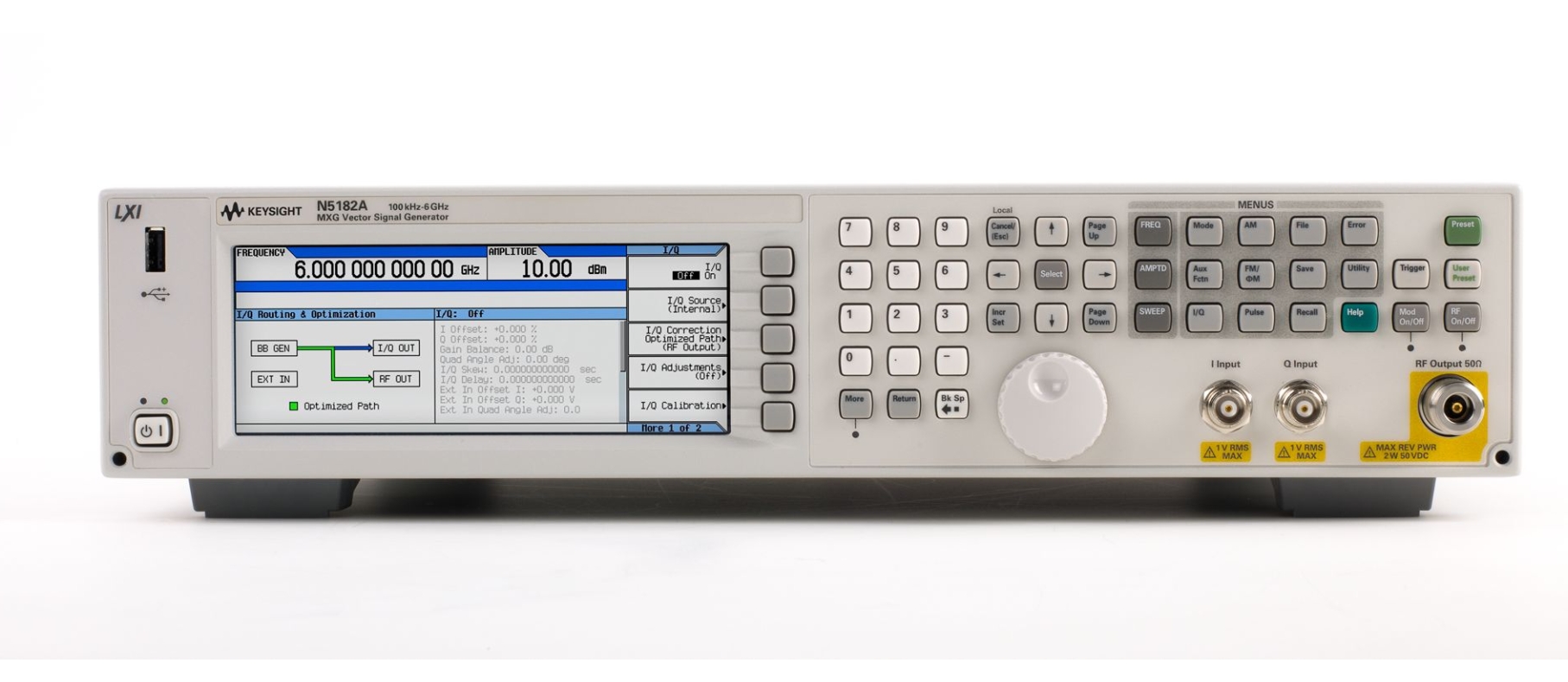

Keysight N5182A (Agilent) MXG RF vector signal generator features fast frequency, amplitude and waveform switching, high power with electronic attenuator, and high reliability - all integrated in two rack units (2RU). The Keysight N5182A is optimized for manufacturing cellular communications and wireless connectivity components. The Keysight N5182A delivers better value for your investment by increasing throughput, improving test yields, maximizing uptime, and saving rack space. The Keysight N5182A features scalable RF and baseband performance that can be easily configured to meet your specific test needs.
The Keysight N5182A (Agilent) offers the industry's best combination of high power and distortion performance to ensure accurate component design validation. When combined with flexible Signal creation tools such as Signal Studio software, the low ACLR (-73 dBc for 1-carrier W-CDMA, +5 dBm) makes the Agilent N5182A a complete solution for W-CDMA, WiMAX™, and more. Simplified self-maintenance reduces time to repair and performance verification, and keeps downtime under 2 hours with field replaceable components.
Keysight N5182A (Agilent) MXG RF vector signal generator features and specifications include:
Signal characteristics:
100 kHz to 3 or 6 GHz
+23 dBm output power @ 1GHz
= -121 dBc/Hz (typical) Phase noise (1 GHz and 20 kHz offset)
In SCPI mode = 1.2ms switching speed; =900 µs Toggles frequency, amplitude, and waveform simultaneously in list mode
Modulation and scanning:
AM, FM, øM and pulse
Digital stepping and list scanning while switching frequency, power and waveform
Baseband generation and signal creation:
Internal baseband generator (100 MHz RF bandwidth; Up to 125 Msa/s sampling rate) : Arbitrary waveform only
Up to 64 MSa playback memory and 800 MSa storage
Create reference signals: WLAN, WiMAX, W-CDMA, cdma2000, GSM, TD-SCDMA, etc
W-CDMA dynamic range: For 1 carrier, +5 dBm output power =-73 dBc; For 4 carriers, =-67 dBc
Automation and communication interface:
100BaseT LAN, USB 2.0, and GPIB
Meets LXI Class B standards
SCPI and IVI-COM drivers
Backward compatible with all ESG, PSG, 8648 signal generators and oth
