Product Description:

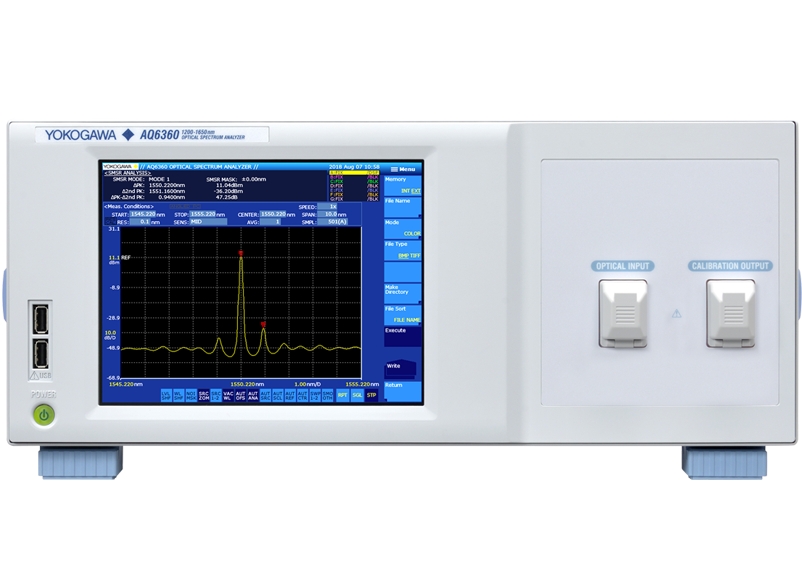

The AQ6360 is a cost-effective spectral analyzer based on diffraction grating technology. The AQ6360 meets the typical measurement needs of industrial manufacturing of telecommunications equipment such as lasers, optical transceivers and optical amplifiers.
The AQ6360 has a wavelength range of 1200 to 1650 nm, making it ideal for manufacturing testing. The free space optical input structure design ensures high coupling efficiency and measurement repeatability. Additional features and functions of the AQ6360 include built-in analytical capabilities and Ethernet and GPIB remote interfaces.
Features:
Wavelength range: 1200~1650nm
Wavelength resolution: 0.1~2nm
High wavelength accuracy: ±0.02nm
High dynamic range: 55dB
Wide measuring range: +20~-80dBmProduct Description:
