Product Description:
The signal source is a high performance, affordable RF source. Using a unique, innovative architecture (frequency synthesis technology), it provides ultra-high resolution (1μHz), excellent phase noise, multi-function modulation (AM, FM, ΦM, pulse modulation and scanning).

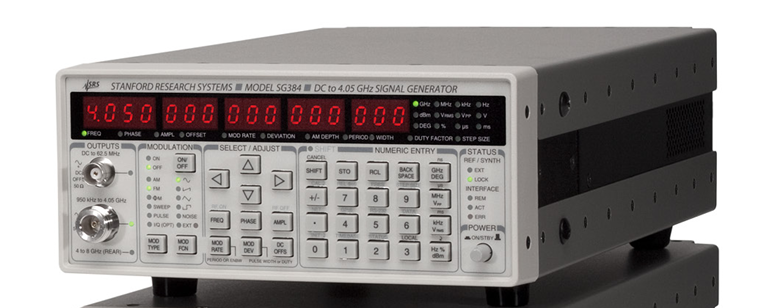

The standard SG384 produces a 4.05GHz sinusoidal signal, an optional frequency multiplier (opt02) to extend the frequency to 8.1GHz, an optional low-vibration differential clock output, and an external I/Q modulation input, and an optional rubidium clock to improve accuracy.
Features:
Frequency range DC to 4.05GHz
Resolution 1μHz
Am, FM, ΦM, PM
OCXO time base (Standard)
-116dBc/Hz SSB phase noise (20kHz offset, f =1GHz)
Rubidium time base (optional)
Square Wave clock Output (optional)
Analog I/Q input (optional)
Ethernet, GPIB and RS-232 interfaces
