B2987B 静电计/高电阻计是一个图形静电计，允许您自信地测量0.01 fA （0.01× 10 - 15 A ）分辨率的小电流和高达 10P Ω（ 10 × 10 15 Ω）的大电阻。此外，电池操作可消除关键测量中的交流线噪声。它拥有4.3“带有图形用户界面的彩色液晶显示器，除了数字信息外，还提供趋势图和直方图数据。这些前台功能使您无需PC即可捕获瞬时行为并进行快速统计分析。可用的设置完整性检查软件选项允许您比较不同的布线和固定安排的噪声水平，以帮助隔离外部噪声源。

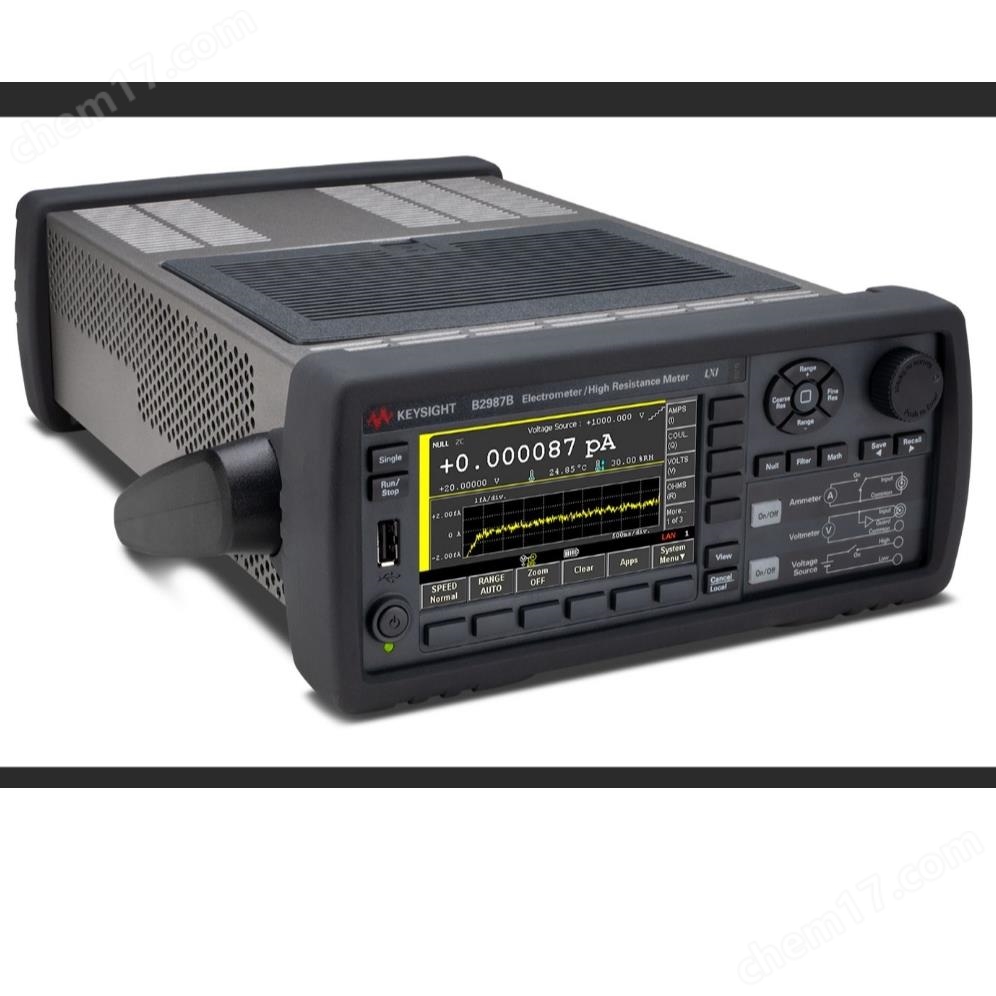

B2987B Electrostatic Voltmeter/High Resistance Meter is a graphical electrostatic voltmeter that allows you to confidently measure small currents with a resolution of 0.01 fA (0.01×10-15 A) and large resistances up to 10P Ω (10×1015 Ω). Additionally, battery operation eliminates AC line noise in critical measurements. It features a 4.3" color LCD display with a graphical user interface, providing not only digital information but also trend and histogram data. These front-panel functions allow you to capture transient behavior and perform quick statistical analysis without a PC. Available software options for setting integrity checks allow you to compare the noise levels of different wiring and fixed arrangements to help isolate external noise sources.
Measuring Capability
Minimum measurement resolution of 0.01fA
Measure the maximum resistance of 10 PΩ with a 1000 V power supply.
20,000 readings per second
Main Features
Battery-operated noise-free measurement of AC power lines
You can optionally set up integrity checking software.
Easy-to-use automatic navigation
Real-time noise monitor
