Product Description:

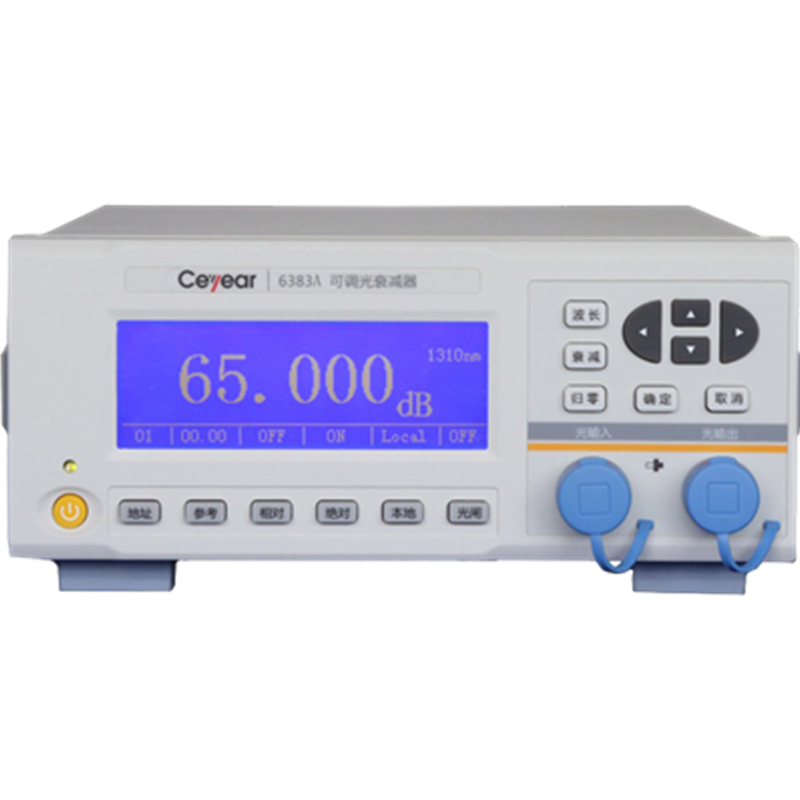

The 6383B/ 6383B-mm dimmable optical attenuator can provide continuous adjustable attenuation of 0 ~ 65dB in the wavelength range of 1200nm ~ 1650nm/850nm, without power jump, with high attenuation accuracy and repeatability. The instrument has decay mode and relative decay...
Features:
Wide working band, large attenuation range
High attenuation accuracy, low insertion loss
Attenuation mode and relative attenuation mode
Optical gate and attenuation return to zero function
Wide working band, large attenuation range
6383B/6383B-MM can achieve 0 ~ 65dB attenuation of optical signals at any wavelength point in the wide band range of 1200nm ~ 1650nm/850nm, and the instrument does not need to shift in the entire attenuation range, without power jump.
High attenuation accuracy, low insertion loss
The 6383B/6383B-MM has a attenuation accuracy of up to ±0.15dB/±0.3dB and a repeatability of ±0.015dB/±0.03dB, and the insertion loss is within 1.5dB, providing users with high precision attenuation.
Attenuation mode and relative attenuation mode
The instrument has a attenuation mode (including insertion loss) and a relative attenuation mode (relative to the display of any set reference value) to meet a variety of customer test needs.
Optical gate and attenuation return to zero function
The optical gate function can isolate the input optical port and the output optical port of the instrument; The zeroing function enables one-click setting of 0dB attenuation.
