Product Overview:

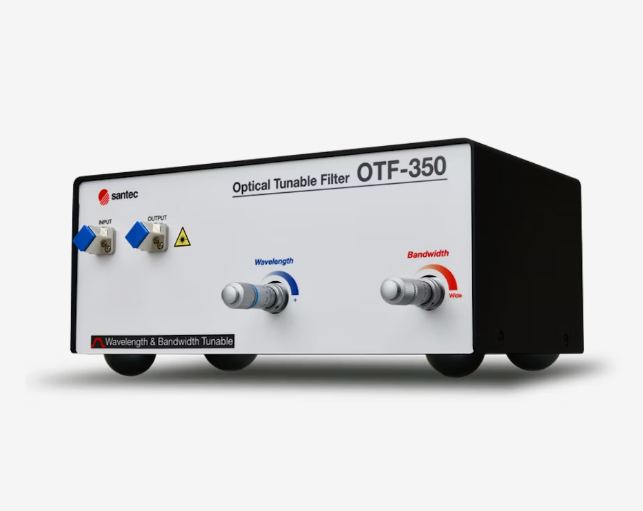

The OTF-350 is a versatile manual optically tunable filter that allows simultaneous and independent tuning of center wavelengths and bandwidths in the C and L bands. Its unique precision free-space optics and precise tuning mechanism result in excellent optical control and a flat-top passband shape for filtered signals.
Product features:
Flat top filter shape and low IL
Wavelength range: 1530 to 1610 nm (C&L band)
Crosstalk > 50 dB (typical)
The central wavelength and transmission bandwidth can be changed independently and continuously
Wavelength range: 1530 to 1610 nm (C&L band)
O-band is available upon request.
Flat top filter shape
Bandwidth: 0.2 to 10.0 nm (normal)
Bandwidth: 0.1 to 15.0 nm (wide type)
40 Gb/s, 100 Gb/s transmission test
WDM wavelength tuning
ASE noise filtering
Pulse shaping
Next generation beam wavelength OXC
