Product Description:

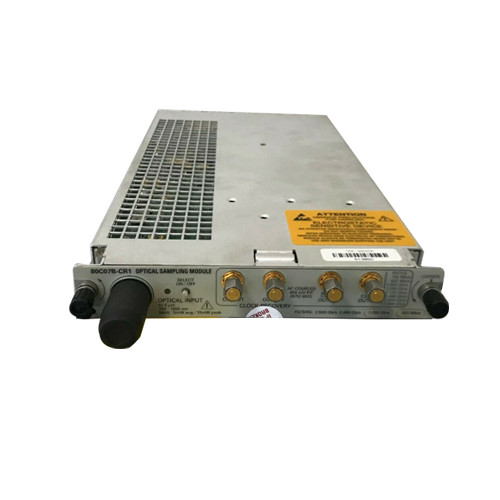

The 80C07B module is a wide-wavelength (700 to 1650 nm) multi-rate optical sampling module optimized for testing data communication/telecommunication signals from 125 to 2500 Mb/s.
The module is designed with an amplified O/E converter that provides excellent signal-to-noise ratio performance and enables users to check low-power optical signals. The 80C07B is optional with clock recovery and supports 125, 155, 622, 1063, 1250, 2125, 2488, 2500, and 2666 Mb/s.
Features:
Bandwidth: 2.5GHz
Wavelength range: 700-1650 nm
Fiber input: Single mode or multi-mode (50 or 62.5μm)
