Product Description:

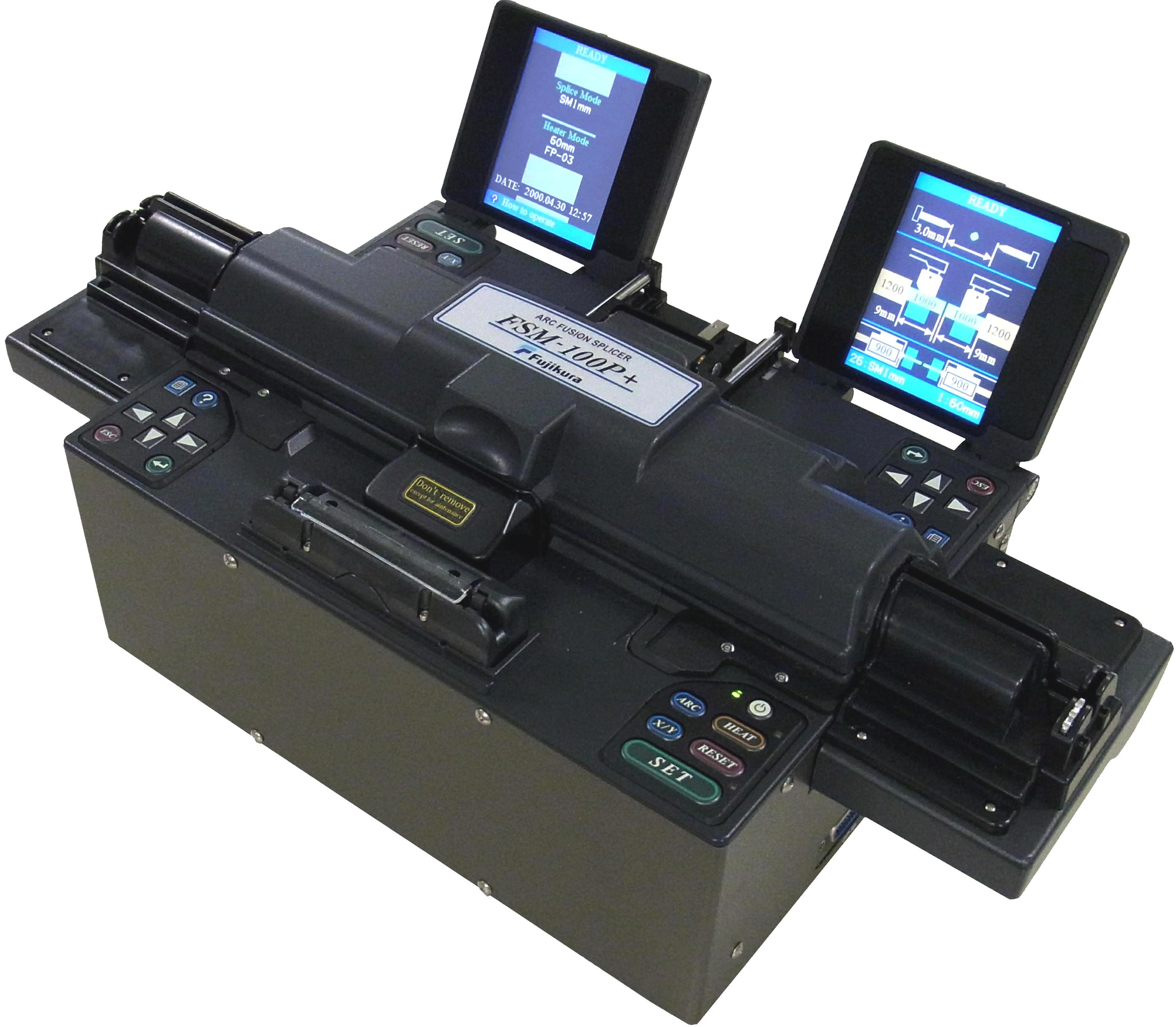

FSM-100P+ is the top version of FSM-100P. It has a periscope that allows you to visualize individual parts of the fiber and locate them, even complex contours (PM, PCF, multi-core, holes, hexagons, etc.). The FSM-100P+ uses a high-power power supply and electrodes to receive optical fibers up to 1200um in diameter. The large stroke motor allows +/- 18mm arc scanning to achieve MFA.
Features:
Compatible with PM and LDF fiber up to 1200um
END VIEW
Mode PM
Fiber index curves for learning and memory Bare fiber length is very short: minimal
3mm V-slot and electric
The electrode SWEEP features a long ARC +/- 18mm Arc
Calibration Special features for automatic realization of cones, ball lenses, MFA...
