Product description

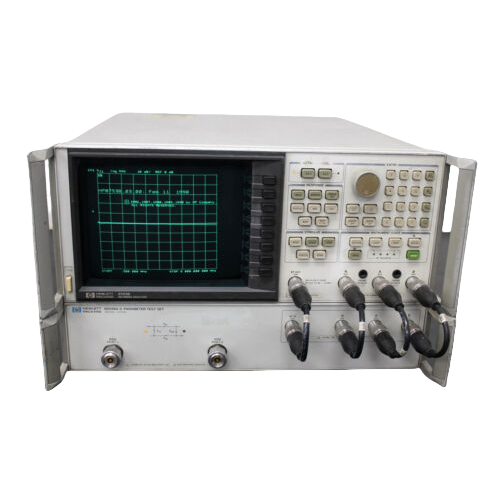

8753B provides an excellent RF network measurement laboratory and production test area. When used in combination with a test set, it has a complete solution to the linear behavior of active or passive networks, devices, or components from 300 kHz to 6ghz. With two independent display channels, you can simultaneously measure and display the reflection and transmission visual characteristics of the device under test, in overlay or split-screen format. The easy-to-use soft key selection measurement function allows you to measure the amplitude, phase, or group delay characteristics of the device under test
Product characteristics
Frequency range :300khz ~ 3ghz
Frequency resolution :1hz
Frequency accuracy (25℃):x10 ppm
Power range :-5 ~ + 20dbm
Power accuracy (50 MHz, + 10 dBm): xO. 5dB
Power linearity (relative to + 10 dBm, 25 x5 C):
Save/recall directly to an external disk drive
Use the test sequence function to execute complex test procedures
100db dynamic range
Group delay and deviation from linear phase
0.001 dB, 0.01℃, 0.01 nanosecond labeling resolution
