Product Description:

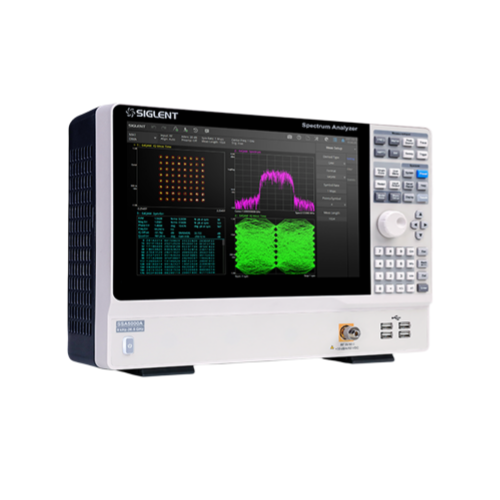

Siglent's SSA5000A spectrum analyzer now offers one-click phase noise measurement. The SSA5000A has a low display average noise level (DANL) and phase noise to ensure test accuracy. The smaller resolution bandwidth avoids the simultaneous measurement of carrier power and noise power, and the measurement results are automatically calculated and graphed. The SSA5000A series features real-time spectrum analysis. The analyzer can provide multidimensional data display and advanced trigger capabilities to address modern RF spectrum challenges such as channel power measurement, frequency hopping, conflicting channels, and spectrum interference.
Features:
Frequencies range from 9 kHz to 13.6/26.5 GHz
-165 dBm/Hz Display average noise level (type)
-105 dBc/Hz@1 GHz, 10 kHz offset SSB phase noise (type)
25mhz / 40mhz analysis bandwidth
Analog modulation analysis and vector digital modulation analysis
Channel power, ACPR, OBW, Harmonics, TOI measurement, etc.
