Product Description:

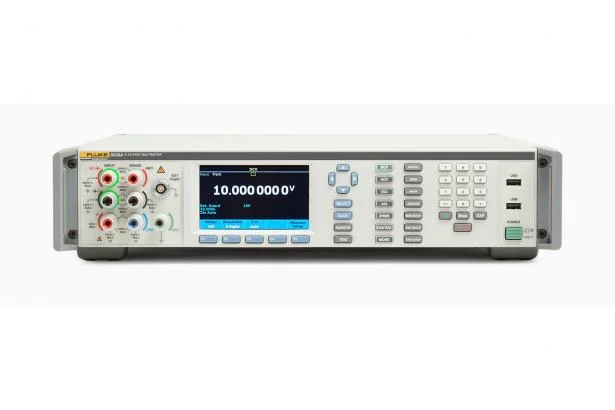

The 8558A has a 5 megabit sampling digitization rate and up to 20 MHz analog bandwidth, making it the first and only instrument on the market capable of verifying very low level transient signals at 18 bit resolution. This feature makes it easier to debug designs, find anomalies, and perfect the device under test for use in a real-world environment.
Features:
Voltage sensitivity up to hundreds of nV, current sensitivity up to hundreds of pA, can detect ultra-low level transient signals
A voltage bandwidth of up to 20 MHz and a current bandwidth of 4 MHz preserve the high bandwidth content of the measured signal
The 18-bit SAR analog-to-digital converter can process 5 trillion samples per second
The sampling rate of 5 megabits per second goes into the buffer for capturing complex, rapidly changing waveforms
15 million readout memory allows for massive data storage and is eliminated
The data needs to be transferred to the PC immediately
Graphical waveform displays enable real-time visualization of complex waveforms, increasing productivity by getting results and results faster
