Product Description:

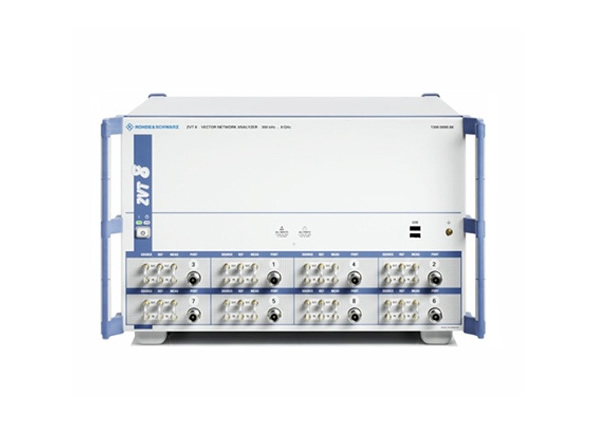

The R&S®ZVT8/R&S®ZVT20 from Rohde & Schwarz is an eight-port/six-port vector network analyzer with frequencies ranging from 300 kHz to 8 GHz/10 MHz to 20 GHz. The R&S®ZVT8 contains up to 4 internal generators and up to 16 receivers. The R&S®ZVT20 contains up to 3 internal generators and up to 12 receivers. The unique concept of using one generator for every two test ports makes the R&S®ZVT ideal for cross-modulation measurements (even measurements on mixers), (true) differential equalization measurements, multi-receiver measurements (using antennas), or high throughput and effectiveness measurements in production processes.
Features:
Multi-port measurement to avoid any time loss due to matrix control
Flexible configuration of test ports for balanced, single-ended measurements
True differential measurement and coherent signal generation
Enhance performance by measuring in parallel on multiple DUTs
A multi-channel receiver that performs simultaneous sampling of multiple channels (for example, for phase measurement of an antenna array)
