Product Description:

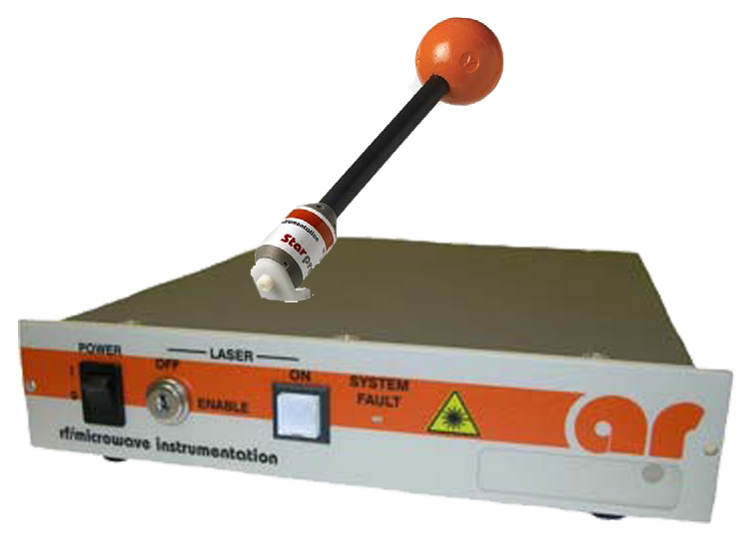

Amplifier Research FA7040/Kit electric field analyzer can measure modulated and CW electric fields in the frequency range of 2MHz - 40GHz. The FA7040 kit includes an isotropic field sensor that will sample the composite field and digitally transmit its amplitude via fiber to the included processor unit.
The processor generates a Web-based oscilloscope display of power density or instantaneous field intensity with time, and calculates the minimum, maximum and average field intensity of the displayed waveform. Amplifier Research FA7040 kit includes an isotropic field sensor, a miniature tripod, glass fiber optic cables, a carrying case and a processor unit.
Features:
Threshold voltage: 3V
Maximum input voltage: 5V
Minimum pulse width: 40ns
Laser: Wavelength: 850nm
Laser output power: ≤500mW
Laser shutdown time: <1ms after the optical fiber is disconnected
