Product Description:

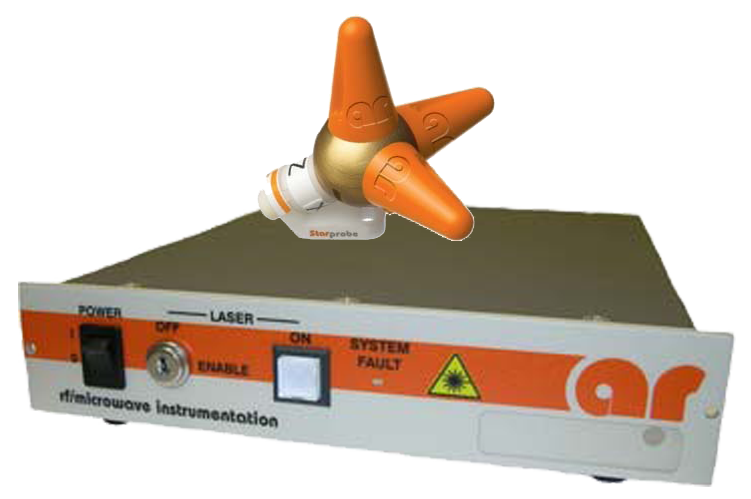

The FA7000 series field analyzers are designed for the measurement of modulated electric fields. Each kit provides a web-based oscilloscope display of changes in instantaneous electric field strength or power density over time and calculates the minimum, maximum and average field strength of the waveform. Each kit includes an isotropic field sensor, glass fiber optic cable, a miniature tripod, and a processor unit. The Processor Unit stores all necessary linearity corrections for its associated field sensor.
The field sensors are laser powered and operate continuously without recharging or battery replacement. Right-angle mounting and adapter pins are provided for easy mounting in common directions.
Each kit provides correction factors for a number of frequencies. These coefficients can be loaded into the processor unit to automatically correct the magnetic field reading at a user-specified frequency. When the correction factor is applied, the true accuracy of the device can be achieved. The glass fiber optic cable between the field sensor and the processor unit is up to 100 meters long.
Features:
Maximum input voltage: 5V
Minimum pulse width: 40ns
Laser: Wavelength: 850nm
Laser output power: ≤500mW
Laser shutdown time: <1ms after the optical fiber is disconnected
