Product Description:

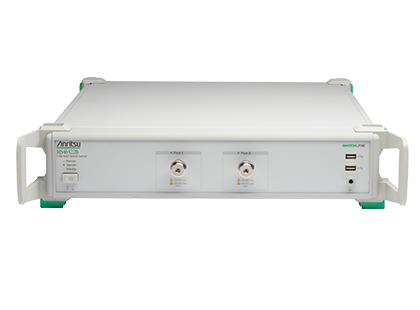

The MS46322B series is an economical vector network analyzer (VNA) with frequencies ranging from 1 MHz to 8/20/43.5 GHz. The series is based on Anritsu's patented shockline VNA-on-chip technology, which simplifies internal VNA architecture at high frequencies, reduces instrument costs, and improves accuracy and measurement repeatability.
The MS46322B series are all 2-port Vnas packaged in a separate, compact and rugged 2U chassis that includes both the power supply and the computer. The entire series features a scan speed of 130 microseconds per point and a dynamic range of over 100 dB up to 43.5 GHz, making it suitable for testing devices such as millimeter wave (mmWave) antennas and other passive 5G components in engineering, manufacturing, and cost-sensitive educational applications.
Features:
Guaranteed performance up to 43.5 GHz with extended K™ port
Ideal for testing RF and microwave devices, millimeter wave antennas, and other passive 5G components
Fast scan speeds and wide dynamic range minimize test time and maximize throughput
Excellent correction directivity allows for reduced measurement uncertainty
Time domain with time-strobe option enables easier and faster fault identification
The industry standard LAN interface for remote control is more powerful than USB and faster than GPIB
