Product Description:

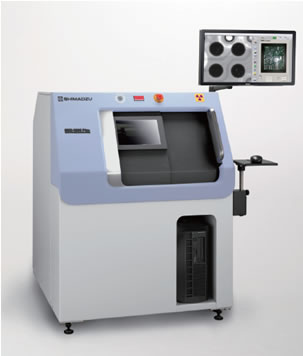

The original SMX-1000/SMX-1000L was the reference frame for inspection machines in the industry, and now we have developed a more concise X-ray inspection device, the SMX-1000 Plus, on this basis. The new model further improves the operation performance of the past, and makes the operation interface more concise and easy to understand, and the enlarged perspective image and appearance image improve the readability of the image.
The new system greatly simplifies the measurement function, and the measurement results can be obtained by one-click operation without complicated parameter setting. In addition to the appearance of the image can implement navigation, step, Teaching (Teaching), image at a glance display and other rich functions, but also added to highlight the area of concern display and other new functions.
use
The SMX-1000 Plus provides non-destructive fluoroscopy at high magnification to check the connection status of ultra-fine parts of high-density real substrate or BGA, CSP, and system LSI (broken wire, contact).
peculiarity
Further improve operability
The interface layout is improved in all directions, which is more concise and easy to understand, and the image is enlarged, which can complete the job more directly than the old model.
Clear image
Adhering to the advantages of older models, we use a flat panel receiver combined with our image processing technology to obtain clear images without distortion.
Oblique perspective
From the Angle of oblique perspective, we can find bad points that cannot be found by vertical perspective.
Simple measurement
We use the self-developed image processing technology to automatically optimize the original cumbersome measurement parameters, and the measurement results can be obtained by one-click operation.
By adding a VCT component, the device becomes a CT device.
Excellent operating performance
Check the default function of the condition
Since the captured images are rich in dynamic information, the system can immediately see an optimized image of the desired part (material) by selecting the appropriate setting from the inspection conditions list without changing the X-ray conditions.
Positioning with appearance CCD
With the CCD camera that can photograph the whole area of the stage, the position of the stage is specified, and the stage can be moved instantaneously to the desired observation position with simple operation.
