Product Description:

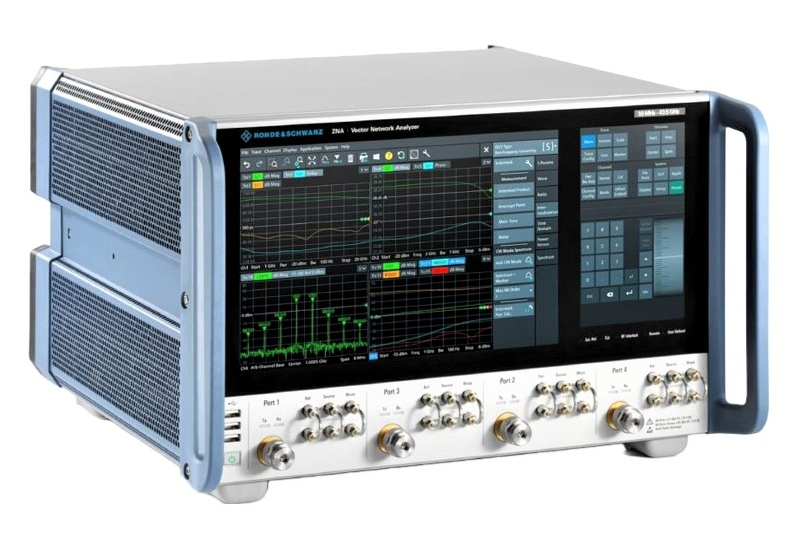

The Rohde & Schwarz ZNA67 features exceptional stability, low trace noise and excellent raw data, making it a perfect choice for development and production applications that require high accuracy, e.g. for developing and producing components and modules for A&D and satellite applications. It offers up to four internal, phase-coherent sources, allowing independent control of the signal's frequency at each port as well as phase measurements on mixers. The Rohde & Schwarz ZNA67 provides two internal LO sources, a true multichannel receiver architecture, pulse generators and modulators, an internal combiner and comprehensive trigger and synchronization capabilities.
Product features:
Frequency Range 10 MHz to 67 GHz
Number of Ports 2 or 4
Dynamic Range 139 dB (typ.), up to 170 dB (typ., with opt)
Trace noise < 0.001 dB (at 1 kHz IF bandwidth)
