Product Description:

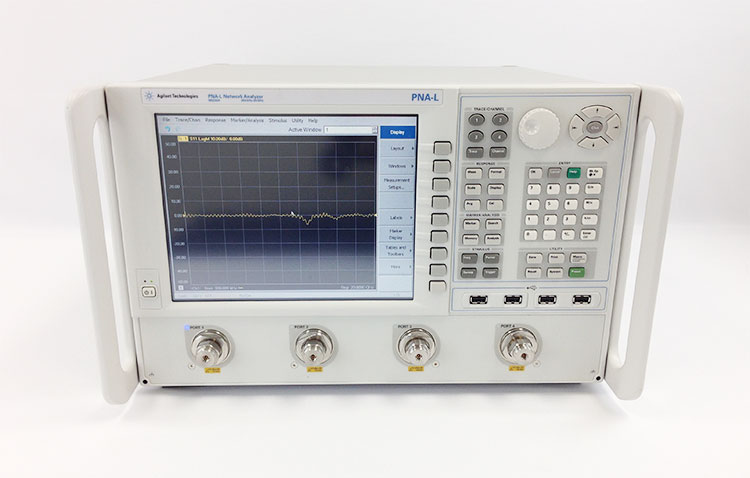

The Agilent N5232A PNA-L series network analyzers offer one of the highest performance mid-range vector network analyzers for design and manufacturing electrical engineers. The Keysight N5232A has extremely accurate S parameters at a price that purchasing managers can afford, and the ability to upgrade its functionality with other options in the future, thus extending the life of the instrument. The entire Keysignt PNA-L series of network analyzers is designed for passive component and simple active device measurement of amplifiers and inverters.
The N5232A PNA-L VNA replaces the existing N5230C and is fully compatible, which means your Settings or test code need not be changed.
Features:
300 kHz to 20 GHz frequency range
2-port or 4-port with a single built-in source
133 dB system dynamic range
100,001 points
200 channels
15 MHz IF bandwidth
High output power (+13 dBm)
Low background noise of -120 dBm (10 Hz IF bandwidth)
