Product Description:

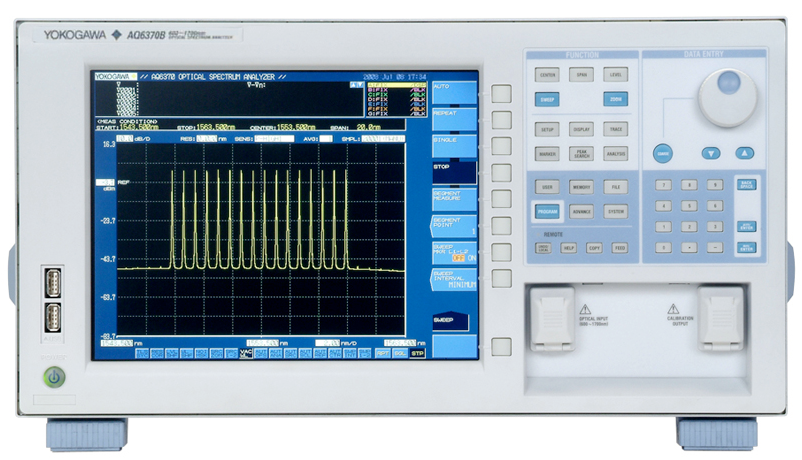

The AQ6370B is a high-performance spectral analyzer with a wavelength range of 600~1700nm. It inherits the excellent optical performance of the AQ6317B/C and the friendly interface and fast measurement characteristics of the AQ6319. The latest USB interface enhances operability and data processing capabilities.
The AQ6370B uses a newly developed high-performance grating to achieve a high wavelength resolution (0.02 nm) and a wide short-range dynamic range (70 dB). With the clearer spectral characteristics of the new grating, OSNR measurements of DWDM transmission systems at 50 GHz spacing and EDFA evaluation of multiple wavelength sources can be successfully performed.
Features:
Power: +20 dBm to -90 dBm
Wavelength: 600 nm to 1700 nm
It can handle multimode fiber up to GI 62.5/125, which is commonly used in high-speed Ethernet networks
Real-time remote operation for monitoring and troubleshooting
The AQ6370B can use PEAK HOLD or use an externally supplied trigger to capture the peak power of the pulse signal to synchronize with the measured signal.
High wavelength resolution: 0.02nm
Support DWDM 25Ghz channel interval test
