Product Description:

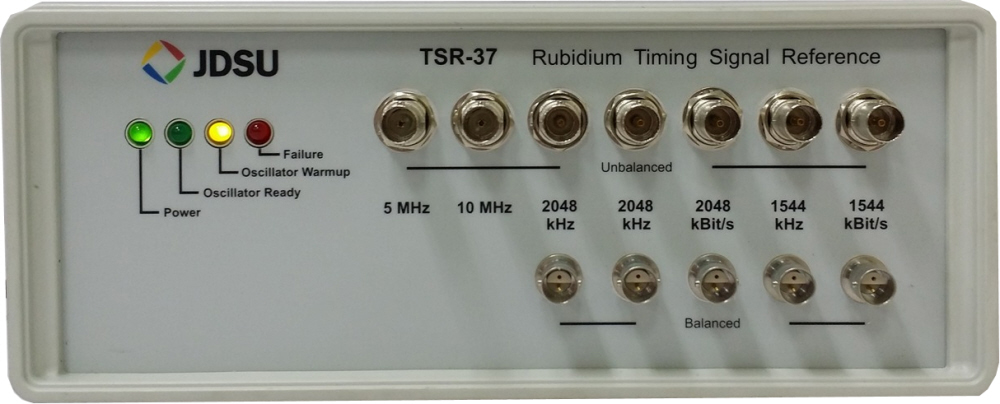

The TSR-37 is a powerful reference source for quickly measuring and testing the synchronization quality of PDH/SDH/SONET digital networks. Easily take MTIE and TDEV measurements up to 1000 seconds without a GPS reference. Combined with the optional GPS-FC, the observation time range can be extended to a large extent to meet specific requirements. Provides a reference clock for drift analysis using ANT-10G/ANT-20.
Features:
PDH/SDH/SONET drift measurement source
Accuracy at 25°C: +5 x 10-11, no GPS; <1 x 10-11 with GPS (does not include GPS antenna option)
12 outputs, with and without frames:
5 MHz, 10 MHz, 2.048 kHz, 1.544 kHz, E1, T1
Compact, rugged and lightweight
External automatic calibration input
GPS or cesium reference input
