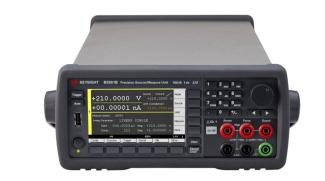

Keysight B2901B 精密型源/测量单元是结构紧凑、经济高效的台式源/测量单元（SMU），能够以高分辨率和高精度提供和测量电压和电流。凭借最小 10 fA/100 nV 的源和测量分辨率，它能够进行非常低的电平测量。用户友好的前面板 GUI 和 4.3 英寸彩色 LCD 显示屏支持图形和数字视图模式，可加快交互式测试、表征和调试操作。基于 PC 的控制软件无需编程即可从 PC 远程进行测量。
B2901B SMU 提供卓越的测量吞吐量，并支持传统的 SMU SCPI 命令，以便于测试代码迁移。这些功能提高了 SMU 在将 SMU 集成到生产测试系统时的效率并降低了拥有成本。10 微秒的数字化能力，除了 DC 特性外，还可以捕获低频现象。它可以用作无缝 4 象限精密电压/电流源、电气负载、精确电压/电流表、脉冲发生器和 AWG。其多功能的一体化集成源和测量功能使其能够执行从 DC 到 Low Frequency AC 的各种测量，而无需更改连接或使用其他设备。B2901B SMU 具有广泛的应用范围，从研发和教育到工业开发、生产测试和自动化制造。
KEYSIGHT / AGILENT B2901B 精密型源/测量单元的规格包括：
| 通道数 | 1 |
| 最小源分辨率 | 1 pA / 1 微伏 |
| 最小测量分辨率 | 100 fA /100 nV |
| 最大输出 | 210V， 3.03A（直流） /10.5A（脉冲） |
The Keysight B2901B Precision Source/Measure Units are compact and cost-effective benchtop Source/Measure Units (SMUs) with the capability to source and measure both voltage and current with high resolution and accuracy. With a precision minimum of 10 fA/100 nV sourcing and measuring resolution, it is able to make very low-level measurements. User-friendly front panel GUI and 4.3-inch color LCD display supports both graphical and numerical view modes, speeding up interactive test, characterization and debug operations. PC-based control software makes measurements remotely from a PC without the need to program.
The B2901B SMU offers superior measurement throughput and supports conventional SMU SCPI commands for easy test code migration. These features improve efficiency and lower the cost of ownership when integrating the SMUs into systems for production test. 10 microsecond digitizing capability which allows to capture low frequency phenomena in addition to DC characteristics. It can operate as a seamless 4-quadrant precision voltage/current source, an electrical load, an accurate voltage/current meter, a pulse generator and an AWG. Its versatile all-in-one integrated source and measurement capabilities allow it to perform a wide variety of measurements from DC to low frequency AC without the need to change connections or use additional equipment. The B2901B SMU has a broad application range that spans uses from R&D and education to industrial development, production test and automated manufacturing.
Specifications for the KEYSIGHT / AGILENT B2901B Precision Source/Measure Unit Include:
| Number of channels | 1 |
| Minimum source resolution | 1 pA / 1 μV |
| Minimum measurement resolution | 100 fA /100 nV |
| Maximum output | 210V, 3.03A(DC) /10.5A(Pulse) |
