Product Description:

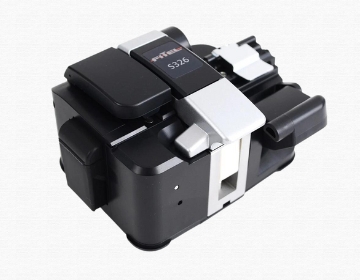

An ergonomic and lightweight design, the S326A cleaver gives the operator the versatility to split on the workbench or in the palm of his hand. The reduced cap size and wide opening Angle help the fiber load and improve stability, resulting in better cutting results for single and ribbon fibers. Just press the lever to cut the fiber and collect the waste liquid automatically. With 24 locations, the long-life blade enables 48,000 fiber cuts.
Features:
Easy loading fiber
Simple operation
Durable and reliable design
Wide lid opening
Technical specifications:
Fiber types: All fiber types, single fiber to 12 fiber bands
Cladding diameter: 125 μm (also available for 80 μm)
Coating diameter: 250 to 900 μm for a single fiber; Carbon bands 280 to 400 μm thick
Cut length: Single fiber: Fixed length - 10 & 16 mm, variable length - 3 to 20 mm, ribbon fiber: 10 mm fixed length
