Product Description:

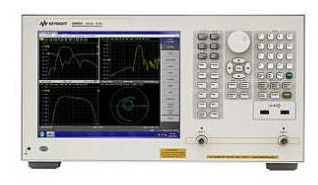

Keysight Technology E5063A
The Keysight E5063A is a low-cost network analyzer that provides optimized performance and functionality for testing simple passive components such as antennas, cables, filters, and PCBS. The Keysight E5063A offers your business the best balance between price and performance to meet your business and technical requirements. It utilizes an industry-standard consistent measurement framework. The ENA series increases efficiency and productivity, and is future-proof and ready to evolve as technology changes.
U1810B USB coaxial SPDT switch can be controlled by E5063A. By programming measurement sequences for the U1810B and E5063A, you can build economical multi-DUT test solutions to test VSWR for four antennas using one instrument. This will further reduce your testing costs.
The E5063A with option 011 is a PCB analyzer that provides time - and frequency-domain measurement capabilities and a graphical user interface for PCB manufacturing testing. Compared to traditional sampling oscilloscopes, the E5063A PCB analyzer offers higher accuracy and R&R (repeatability and reproducibility), more language support, and greater ESD robustness.
Features and specifications:
E5063A ENA series network analyzer
100kHz to 4.5/8.5/18GHz
2-port 50 ohm S parameter tester
Trace noise: 0.002 dB rms (typical value)
Dynamic range: 122 dB (typical)
Stability: 0.01dB/℃
Fixture simulator
Option 011 Time Domain Analysis/Test Wizard
