光 TX 模块支持 1310nm at 10Gb/s
光 10G TX 模块支持 1550nm 的“高输出功率”
支持 1.5 Mb/s 至 10 Gb/s - 一体机
全球映射 - SONET、SDH 和日语
SONET 和 SDH 映射支持在同一主机中，无需更改 DSn/PDH 模块（MP1570A1 主机）
从 OC-3c/STM-1c 到 OC-192c/STM-64c 的级联映射
各种错误/警报生成和分析
强大的直通模式和混合有效载荷能力
ATM 测试从 OC-12c 到 1.5 Mb/s
ITU-T 一致性测试
APS 开关时间测量
CID 模式、BERT 和故障搜索功能
串联连接监测、光功率和频率测量
帧存储/捕获功能
SONET/SDH 上的数据包 (POS) 和 ATM 上的 IP (IPOA)
在同一主机内支持高达 2.5 Gb/s 的抖动和漂移测量
使用 MP1580A 支持 2.5G/10G 的抖动和漂移测量
使用外部 OCDU（光信道引入单元 - MN9320A）进行 DWDM 测试
Product Description：

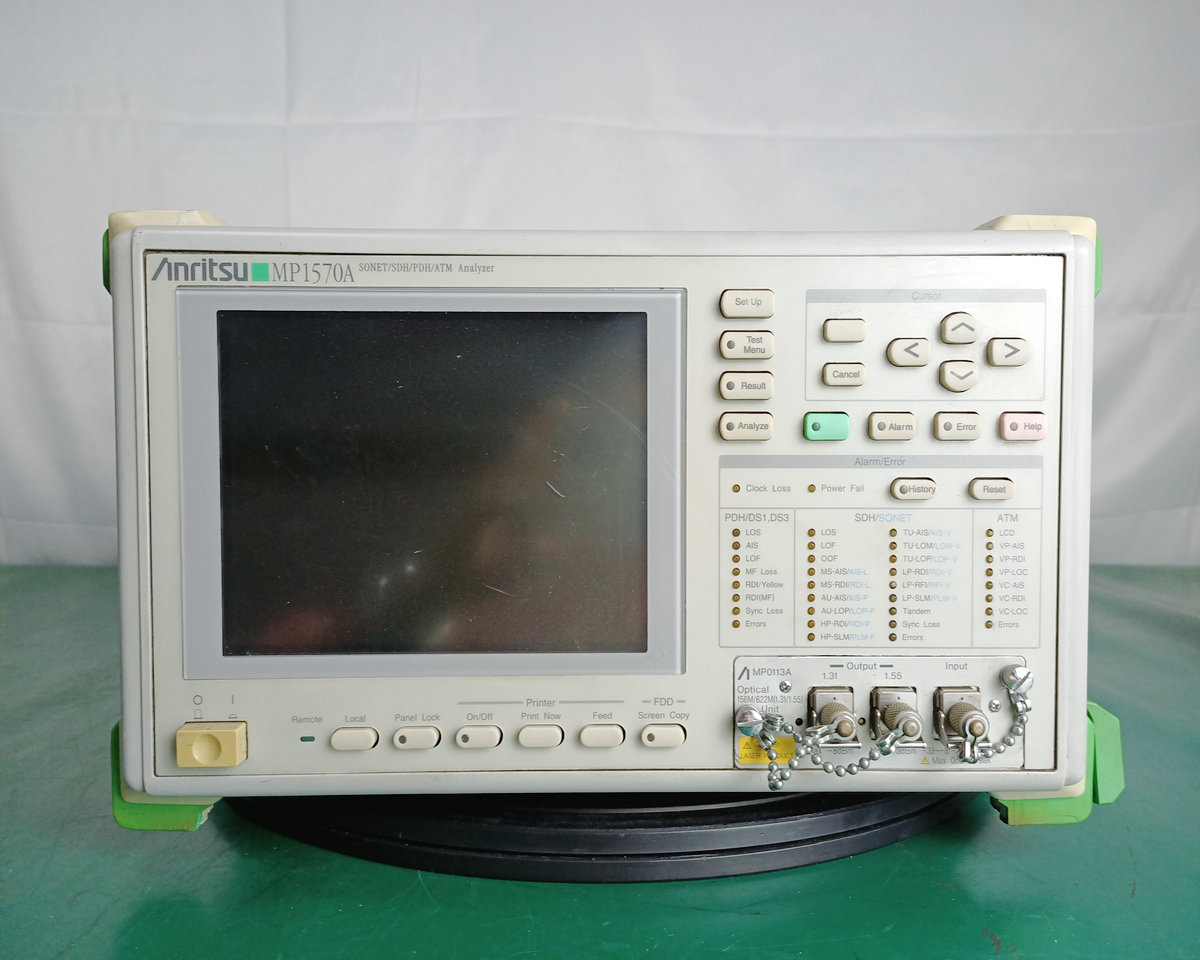

The MP1570A is a versatile analyzer that can be used in the R&D, manufacturing, installation, maintenance and inspection of SONET, SDH, PDH, and ATM chipsets, systems and networks. Its plug-in or modular card architecture allows you with flexible configuration options for various applications. Concatenated payloads can be generated to simulate live traffic from OC-3c/STM-1c to OC-192c/STM-64c. The MP1570A offers more streamlined options and features enabling to reach its full performance potential and maximizes its testing capability.
Besides all standard testing features that are found in all test solutions, the MP1570A also offers a host of new advanced features --- CID pattern, No frame pattern, Mixed payload as well as different types of powerful through-mode function which makes it a powerful tool for R&D and manufacturing.
New options such as: "Packet over SONET/SDH" (POS) and "IP over ATM" (IPOA) are now available in the MP1570A making it more powerful than before. When equipped with POS option, real time counting of PPP (point to point protocol) packets in SONET or SDH frames can be performed. IP packet data editing, programming, PPP packet to packet interval setting, and transmission of PPP packets with FCS (frame check sequence) error --- all are possible with the POS option. And with the IPOA option, much faster analysis can be performed as ATM/AAL5 errors and alarms can now be measured in real time.
The MP1570A's functional design minimizes setup time and reduces costs by eliminating the need for multiple test instruments. The analyzer has built in printer and 3.5 inch floppy disk drive as standard. Smaller in size, portable and yet supporting all rates from 1.5 Mbps to 10 Gbps in a single mainframe, gives you more flexibility to test any rate without going through the troubles of changing any of the plug-ins. With the capability of supporting all three mappings - SONET, SDH and Japanese (384k), the MP1570A can be used anywhere in the world which makes it a very cost-effective and a perfect analyzer to use globally.
Features：
Optical TX module supporting 1310nm at 10Gb/s
Optical 10G TX modules supporting "High-output power" at 1550nm
Supports 1.5 Mb/s to 10 Gb/s - All in one mainframe
World Wide Mapping - SONET, SDH and Japanese
Both SONET and SDH mapping support in the same mainframe without changing DSn/PDH modules (MP1570A1 mainframe)
Concatenation Mapping from OC-3c/STM-1c to OC-192c/STM-64c
Various Errors/Alarms generation and analysis
Powerful Through Mode and Mixed Payload capability
ATM Test from OC-12c to 1.5 Mb/s
ITU-T Compliance Testing
APS Switch Time Measurement
CID Pattern, BERT, and Trouble Search Function
Tandem Connection Monitoring, Optical Power and Frequency Measurement
Frame Memory/Capture Function
Packet over SONET/SDH (POS), and IP over ATM (IPOA)
Supports Jitter and Wander measurements up to 2.5 Gb/s within the same mainframe
Supports Jitter and Wander measurements at 2.5G/10G with MP1580A
DWDM testing with external OCDU(Optical Channel Drop Unit - MN9320A)
