Product Description:

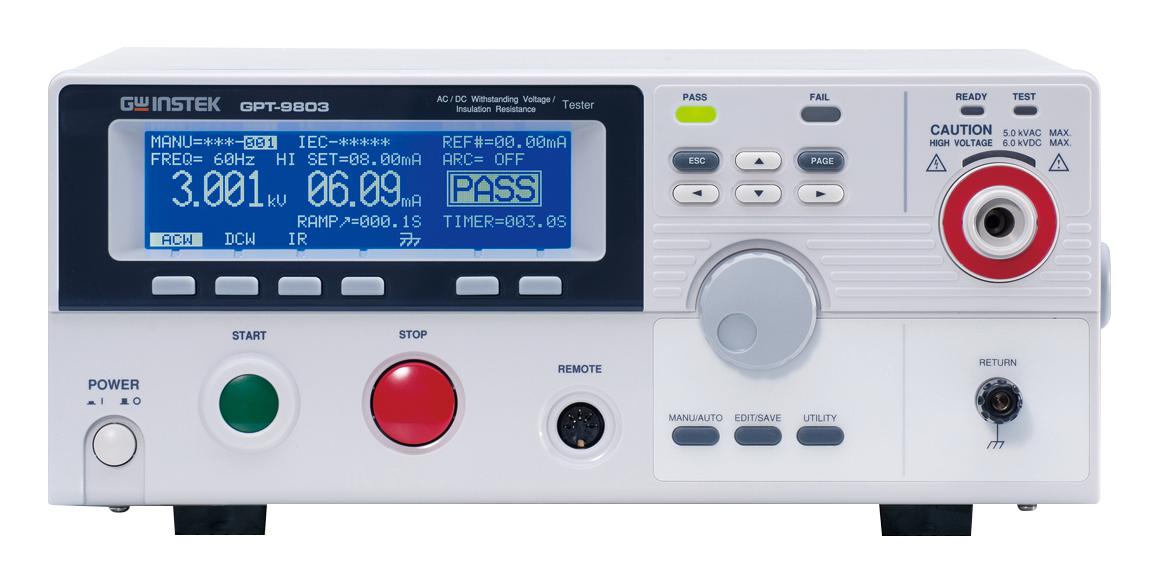

GPT-9803 is a GPT-9800 series AC 200VA AC/DC voltage/insulation resistance tester. It is capable of performing AC and DC withstand tests. GPT-9803 is built on an efficient PWM amplifier platform with a maximum output capacity of AC 200VA to block the effects of voltage fluctuations on the input AC supply. Each time the tester is turned on, a self-test is performed to ensure that all functions and operations are in normal condition, and the zero-crossing design makes the output voltage always start from the zero crossing of the sine wave to avoid the impact of the surge voltage output, when an abnormal output voltage or current upper or lower limit is detected, the output voltage is automatically cut off (within 150μs) during the test. The tester is equipped with a simple and clear panel layout, a high-resolution dot-matrix LCD display, and a color LED indicator that enables the operator to interpret the measurement results easily and quickly.
Features:
Provides a solid foundation for reliable, safe and practical safety compliance testing
0.050KV to 5.000KV AC, 0.050KV to 6.000KV DC voltage resistance, 1Mohm to 9500Mohm insulation resistance
RS-232C, USB, Signal I/O and GPIB (optional) interfaces, 100 memory blocks for test condition Settings
High precision, high efficiency, high stability output and high resolution test performance
AC 100V/120V/220V/230V ±10%, 50/60Hz power, size 330 (W) x 148 (H) x 452mm (D), weight 19Kg
Multiple protection mechanisms, friendly user interface, 500VA power consumption
240x64 Ice Blue dot-matrix LCD, manual/automatic mode, security interlock function
Function keys for quick selection and high-intensity flashes for warning and status indication
Zero pass operation controlled ramp rise time, true RMS current measurement
