Product Description:

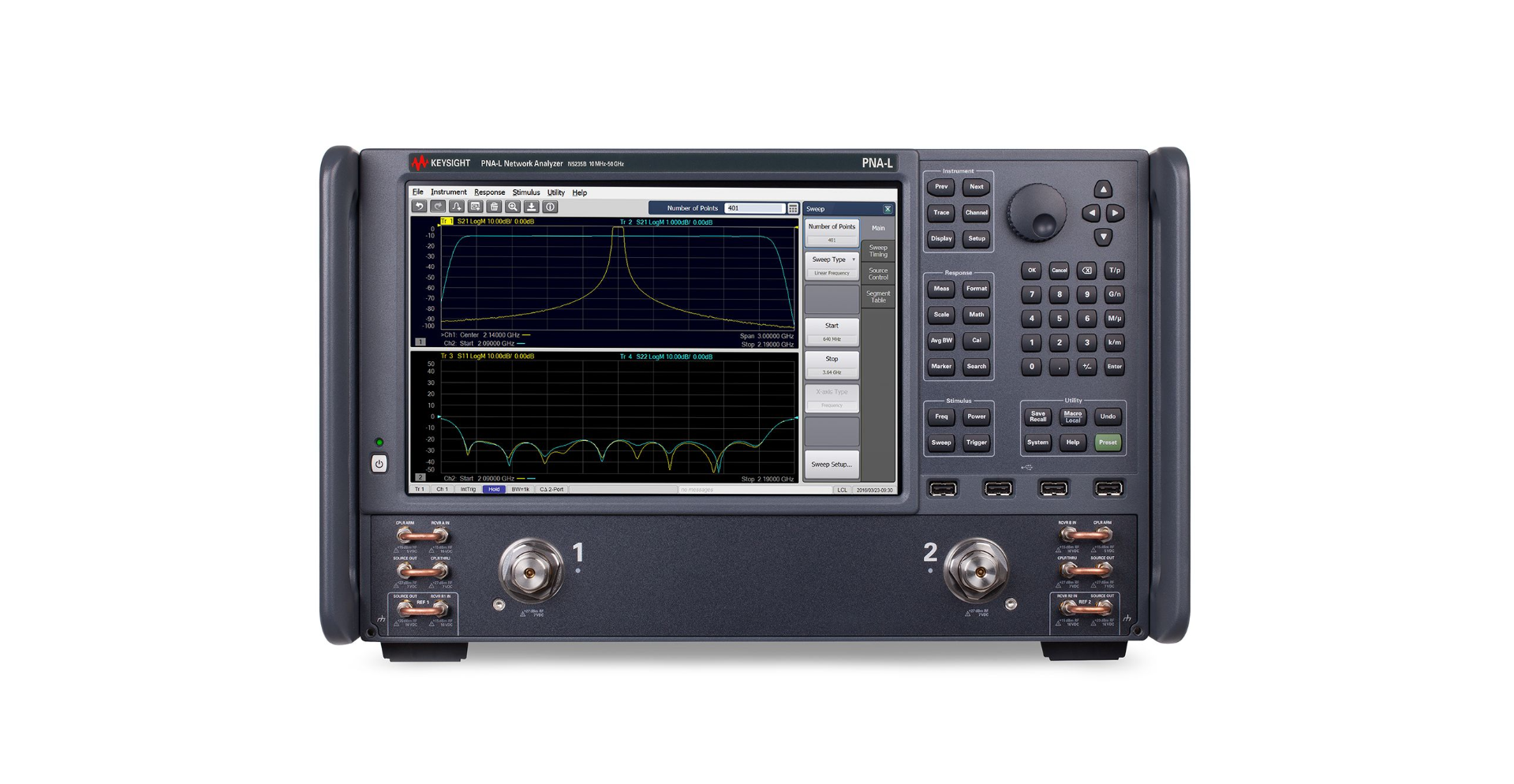

The N5235B PNA-L series network analyzer is designed for S-parameter and simple nonlinear testing of passive components, amplifiers and inverters. The PNA-L uses the same core firmware as the PNA, achieving the perfect balance between value and performance. PNA-L provides efficiency and flexibility for manufacturing and R&D applications in industries ranging from mobile telecommunications and wireless LAN component production to aerospace and defense.
For passive devices with one or more balanced/differential ports, the Keysight N5235B is an excellent choice for mixed-mode S-parameter measurements without the need for Barron. Users can display differential, common-mode, and mixed-mode performance in a variety of trace formats. The measurement parameters include common mode rejection ratio and amplitude and phase unbalance. Supported port configurations include single-ended to balanced and balanced to balanced topologies.
Features:
Basic analysis of passive components and simple active devices.
S-parameters are measured with good accuracy up to 50 GHz in cost-sensitive applications.
Get the best microwave manufacturing cost performance in the world.
Configure economical solutions for signal integrity measurement and material characterization.
Accelerate understanding of component behavior with multi-touch display and intuitive user interface.
