Field Master MS2070A 是 Anritsu 手持式频谱分析仪的最新版本。Field Master MS2070A 建立在经过现场验证的耐用平台上，提供一整套功能，性能高达 3 GHz。MS2070A 设计用于在各种通用现场和实验室环境中进行射频测量。
MS2070A 在 2.4 GHz 时的动态范围为 >105 dB，可以捕获和测量商业和军事应用中常见的 HF、VHF 和 UHF 信号。典型 DANL 具有 -167dBm 的内置可选前置放大器，再加上 +11 dBm 的三阶交调截点 （TOI） 和 ±0.5 dB 的典型电平精度，使手持式频谱分析仪能够捕获全范围的信号。
MS2070A 的设计使工程师可以简单准确地进行高达 3 GHz 的标准扫描频谱分析测量。它在常见的低噪声配置中具有高达 32 GHz/s 的扫描速度。

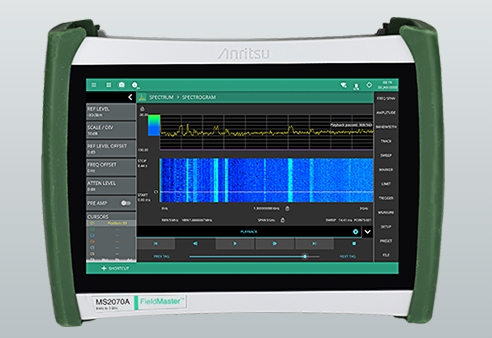

The Field Master MS2070A is the latest version of Anritsu’s handheld spectrum analyzers. Built on a field-proven durable platform, the Field Master MS2070A provides a comprehensive set of features with excellent performance up to 3 GHz. MS2070A is designed to conduct RF measurements in a variety of general-purpose field and lab environments.
With dynamic range of >105 dB at 2.4 GHz, the MS2070A can capture and measure HF, VHF and UHF signals common in commercial and military applications. Typical DANL with a built-in optional preamplifier of -167dBm, coupled with a Third Order Intercept (TOI) of +11 dBm and typical level accuracy of ±0.5 dB enable a full range of signals to be captured by the handheld spectrum analyzer.
The MS2070A is designed so engineers can conduct standard swept spectrum analysis measurements simply and accurately up to 3 GHz. It features sweep speeds of up to 32 GHz/s in common low noise configurations.
