Product Description:

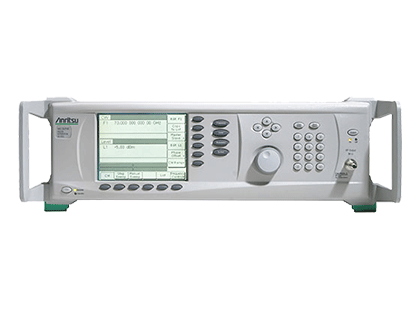

The MG3690C series wideband signal generators cover audio, HF, VHF, UHF, RF, and microwave frequencies from 0.1Hz to 70 GHz with single-coaxial outputs up to 500 GHz or higher with external multipliers. In addition, it can be operated easily via intuitive front panel controls or remotely via GPIB or Ethernet connection. As a result, the MG3690C series is the ideal signal source for RF and microwave requirements and can be fully configured for simple to high-performance applications.
The MG3690C provides three levels of SSB phase noise performance; Standard, ultra-low phase noise (Option 3) and advanced phase noise (option 3X). The MG3690C also has a full range of optional modulation features, including AM, FM, phase and pulse, to meet signal simulation requirements from simple to complex.
Features:
High output power does not require any external amplifier, saving costs
A full range of modulation options can simulate signals from simple to complex
For IQ modulation, it is easy to up-convert external IQ-modulated signals using the IF input option
A single coaxial output frequency ranges from 0.1Hz to 70GHz, and can be extended to 325GHz or higher using an external frequency multiplier
The MG3691C signal generator has a specific frequency range from 2GHz to 10GHz
