Product Description:

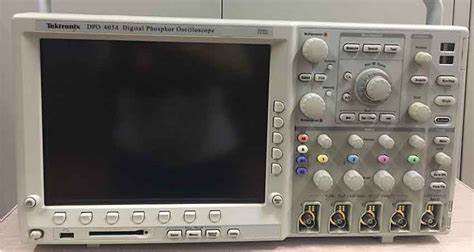

The DPO4054 digital Fluorescence Oscilloscope (DPO) delivers the performance needed to visualize the most demanding signals. Bandwidth ranges from 350 MHz to 1 GHz, and all models offer at least 5× oversampling and sin (x) /x interpolation standards on all channels, so you can be confident that even the fastest transient events will be accurately captured and displayed. The standard 10 M recording length for all channels allows you to capture a long window of signal activity while maintaining good timing resolution. Using Tektronix's proprietary DPX® acquisition technology, the DPO4000 series delivers capture rates of up to 3,700 waveforms per second, saving you minutes, hours, or even days by quickly identifying intermittent burrs and anomalies.
Tektronix's proprietary DPX acquisition technology enables fast waveform capture rates, maximizing the possibility of capturing elusive burrs and other uncommon events.
Features:
-
1 GHz, 500, and 350 MHz bandwidth models
-
4-channel model
-
All channels have sampling rates up to 5 GS/s
-
10 megabit sampling record length on all channels
-
Maximum waveform capture rate of 50,000 wfms/s
-
Wave Inspector ® controls provide unprecedented efficiency in waveform analysis
-
I 2 C, SPI, CAN, LIN, FlexRay and RS-232/422/485/UART string trigger and analysis options
-
10.4 inch (264 mm) XGA color display
-
Small footprint and light weight - only 5.4 inches (137 mm) deep and 11 pounds (5 kg)!
-
USB and CompactFlash on the front panel for quick and easy storage
-
Built-in Ethernet port
-
Plug and play connectivity and analysis software solutions
-
USB 2.0 device port for direct PC control of oscilloscopes using USBTMC
-
Advanced trigger kit
-
e*Scope ® remote viewing and control
-
Interoperability with Tektronix Logic analyzer
-
The TekVPI™ probe interface supports active, differential, and current probes for automatic scaling and unit
-
HDTV and custom video trigger options
