Product Description:

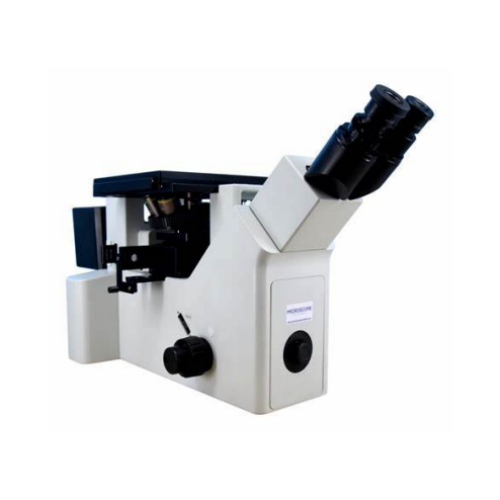

The Olympus GX51 inverted metallographic microscope is a robust, high quality and reliable microscope. This inverted microscope has a binocular viewing head with 10 eyepieces. The front photo port allows you to add a camera. Particle size markers can be inserted using the scale slider provided, and there is room to add two more markers to the slider. The large XY mechanical stage features flexible right hand stage control for added ergonomics. The Olympus GX-AN360 and GX-PO provide polarization for this microscope to help reduce glare and reflection, and the GX-FSL contains three ND filters. This 5-bit objective converter comes with the following objectives - MPlanFL N 1.25x, MPlanFL N 2.5x, MPlanFL N 10x BD, MPlanFL N 20x and UMPlanFL 40x. The microscope is capable of measuring both bright and dark fields and can be fully customized to your needs.
Features:
A new increase in detection efficiency is achieved thanks to the UIS Infinity correction optics, which allow high-resolution observation of flat, bright, uniform images straight to the edge of the field of view (F.N.22) *
In order to meet high magnification observation requirements, the magnification setting has been expanded from 5x to 100x. When using the eyepiece WH10x series
Suitable for bright field and simple polarization observation. The polarizer can be rotated 90° for optimal contrast control
Single pole switch for bright/dark field observation
Standard 6V 100W halogen lamp
Reflective illuminator with aperture stop. The best contrast was obtained according to the magnification of the objective lens and the observation method. Convenient filter bags are available, as various types of f25 filters can be used in addition to polarizers
