Tektronix 80SICMX TDA System (Iconnect MeasureXtractor) is an efficient, easy-to-use, and cost-effective solution for performance evaluation of gigabit interconnect links and devices based on measurement, including signal integrity analysis, impedance, S-parameter, eye diagram testing, and fault isolation.
characteristic:
-
S-parameter measurement
-
Real impedance profile (Z-line)
-
50 ohm calibration
-

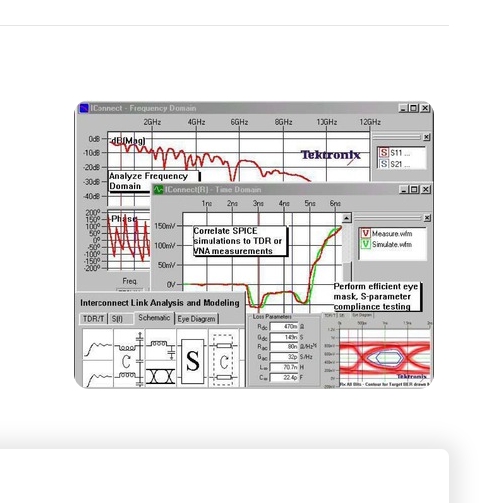

Easily analyze the sources of interconnect interference, loss, crosstalk, reflection, and loops
-
Efficient modeling of PCBs, flexible boards, connectors, cables, packaging, and sockets
-
Analyze interconnection in both time and frequency domains simultaneously
-
Conduct cost-effective eye mask testing, insertion and return loss compliance testing
-
Obtain more accurate impedance measurements
-
Quickly locate interconnect faults
-
Automatically convert TDR/T or VNA data into SPICE models
-
Measurement based, frequency dependent, precise model
-
Model passivity, stability, and causal relationship assurance
-
Easily ensure system level simulation accuracy
-
Easily perform interconnect link analysis
