Product Description:

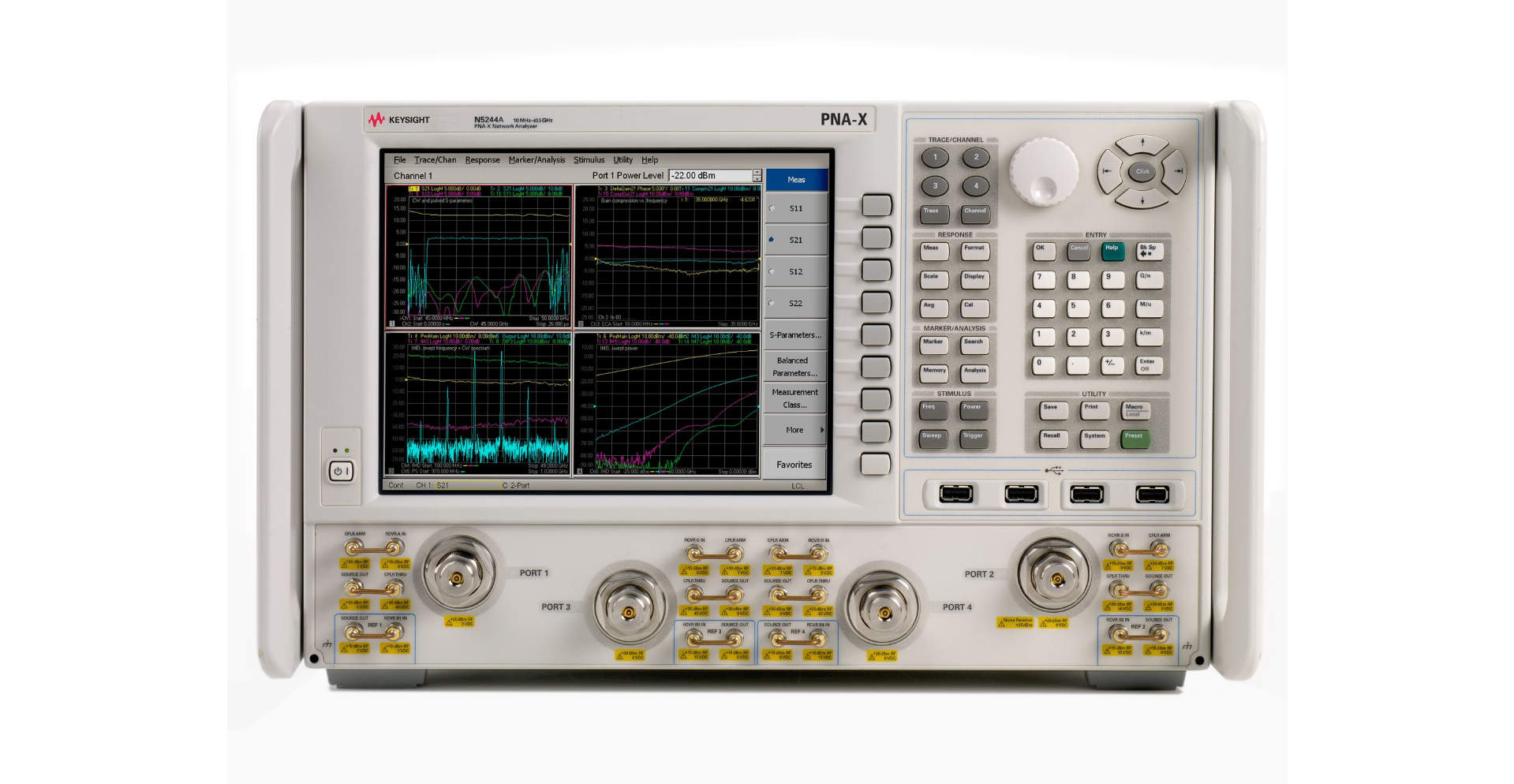

The Keysight N5244A Network analyzer offers a wide range of measurement applications for amplifiers, converters, antennas or mixers through a single connection. Choose from four frequency models to meet your specific device testing needs: 13.5, 26.5, 43.5, and 50 GHz. The network analyzer also provides configurability through a built-in second signal source, combiner, and internal signal routing switch.
Features:
10 MHz to 43.5 GHz
2-port or 4-port with two built-in sources
126 dB system and 129 receiver dynamic range, 32,001 points, 32 channels, 5 MHz IF bandwidth
High output power (+16 dBm), low harmonics (-60 dBc) and wide power sweep range (41 dB)
Best dynamic accuracy: 0.1 dB compression, receiver input power of +15 dBm
The background noise at 10 Hz IF bandwidth is -111 dBm
