Product Description:

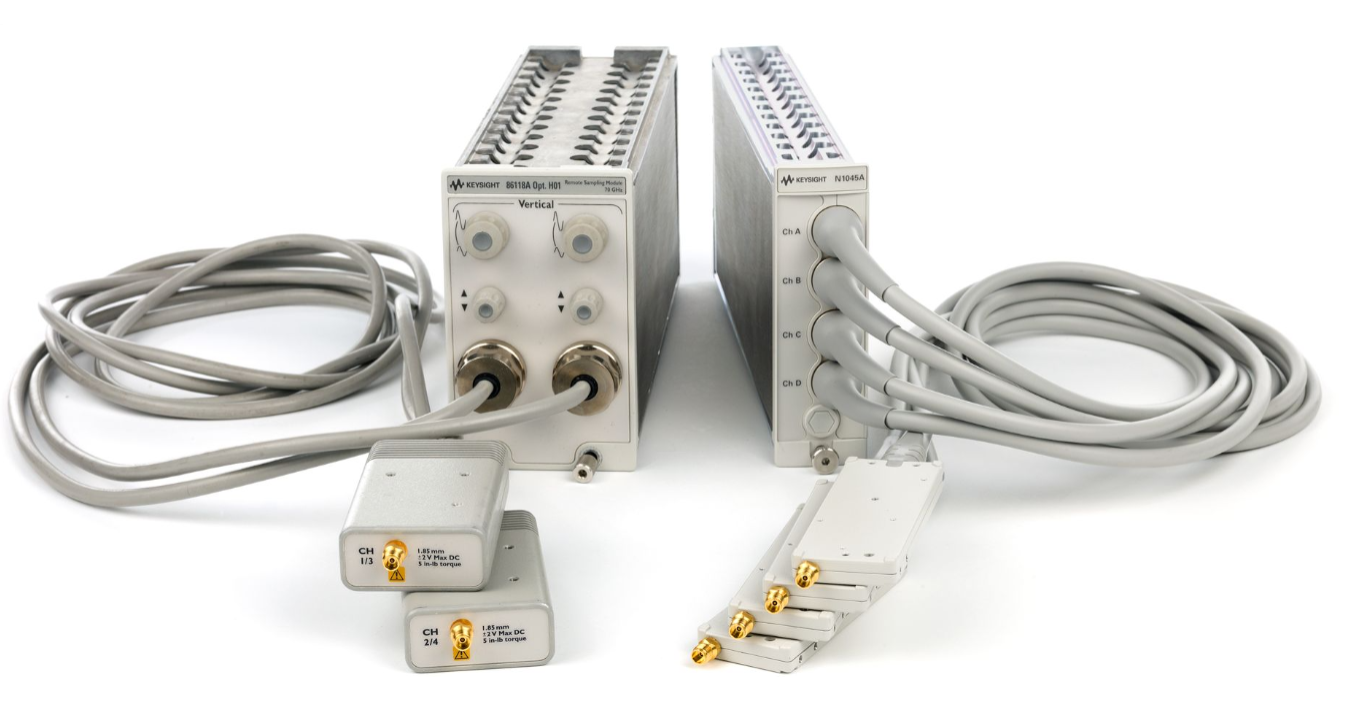

The N1045A/B electrical sampling head modules provides 2 or 4 measurement channels with either 1.85 male or female RF input connectors. The module occupies only one of the four module slots on the 86100D. Because the N1045A/B remote heads contain the sampling electronics, the distance between the sampling and the probe stations or the device under test (DUT) can be made with very short or without cabling. By using a reduced amount of cabling, measurement degradation is minimized. The result is more accurate high-speed electrical measurements. This module scales the input signal, sets the bandwidth of the system, and allows the offset to be adjusted so the signal can be viewed. The output of the module is an analog signal that is applied to the ADCs on the acquisition boards inside the mainframe.
Features
60 GHz bandwidth (65 GHz typical)
Each module is equipped with 2 or 4 channels (optional, upgradeable)
User can select 60/45/35/20 GHz bandwidth settings
Electrical input: 1.85 mm male or female (optional)
