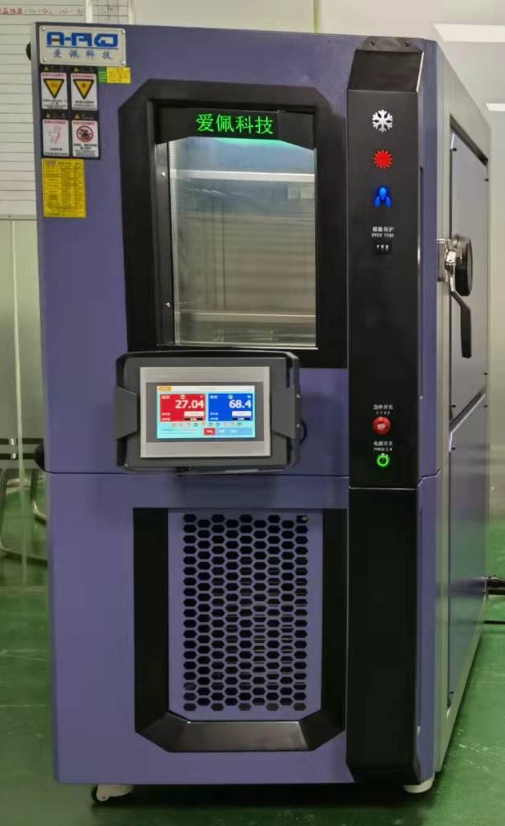

The temperature range of the experimental constant temperature and humidity box can be -50-100 degrees, so it can also be called -50-100 degrees constant temperature and humidity box or |-50-100 high and low temperature oven. The difference between them is more than one humidity, high and low temperature oven does not exist humidity function, the common function is that can do high and low temperature test, at present, Aipei technology also has A temperature range of A:0℃~150℃:B:-20℃~150℃:C:-40℃~150℃:D:-70℃~150℃ can be selected
Technical parameters of constant temperature and humidity chamber for experiment:
System: balanced temperature and humidity control system
Temperature range :-50 degrees Celsius (-60 degrees Celsius) to 100(150 degrees Celsius)
Humidity range: 20%6-98%RH (More temperature and humidity distribution please refer to the industry standard Fan country distribution map)
Temperature fluctuation :+/-0.5 ° C
Temperature fluctuation :+/-2.5%6RH
Temperature uniformity :+/-2 degrees Celsius
Humidity uniformity :+/-39RH
Inner box size (W*H*D)mm:
Volume 80 liters corresponding: width 40x height 50x depth 1000px;
Volume 150 L corresponds to: Width 50x height 60x depth 1250px:
Volume 225 L corresponding: width 50x height 75x depth 1500px;
Volume 408 liters corresponding: width 60x height 85x depth 2000px;
Corresponding volume of 800 liters: width 100x height 100x depth 2000px;
Volume 1000L corresponding: Width 100x height 100x depth 2500px(larger or smaller size can be customized)
Inner box material: stainless steel first class mirror light plate (SUS#304)
Outer box material: stainless steel mist line treatment or high quality steel plate paint
Insulation material: rigid foam and glass wool
Return tower room
Control system: Japan oY09256P original Chinese and English touch LCD controller
Refrigeration system: The international first-line brand France "Taikang" series refrigeration system,
Protection device: no fuse switch, compression overload overheat protection, overtemperature, water shortage, lack of phase protection, fault alarm system
Power supply: single-phase 220V+/-10%650Hz/60Hz or three-phase 380V+/-10%650Hz/60H2(depending on the size and power size of one power supply)
-50-100 high and low temperature oven technical parameters:
System: balanced temperature and humidity control system
Temperature :-50 degrees Celsius (-60 degrees Celsius)- 100(150 degrees Celsius)
Temperature fluctuation :+/-0.5 ° C
Temperature uniformity :+/-2 degrees Celsius
Inner box size (W*H*D)mm: volume 80 liters corresponding: width 40x height 50x depth 1000px; The volume of 150 liters corresponds to: width 50x height 60x depth 1250px; Volume 225 L corresponding: width 50x height 75x depth 1500px; Volume 408 liters corresponding: width 60x height 85x depth 2000px; Corresponding volume of 800 liters: width 100x height 100x depth 2000px; Volume 1000 liters pairs
Should: Width 100x height 100x depth 2500px(larger or smaller size can be customized)
Inner box material: stainless steel first class mirror light plate (SUS#304)
Outer box material: stainless steel mist line treatment or high quality steel plate paint
Insulation material: rigid foam and glass wool
Control system: Japan oY09256P original Chinese and English touch LCD controller
Refrigeration system: The international first-line brand France "Taikang" series refrigeration system
Protection device: no fuse switch, over compression overheat protection, over temperature, lack of phase protection, fault alarm system
Power supply: single-phase 220V+/-10%650Hz/60Hz or three-phase 380V+/-10%50Hz/60Hz(depending on the size and power size of one of the power supplies)
