Product Description:

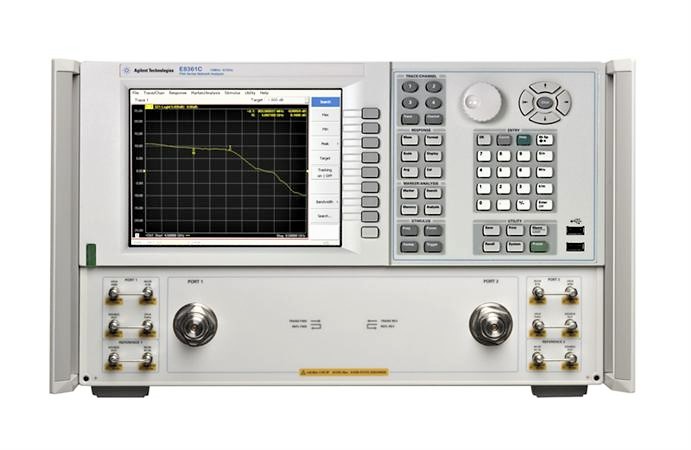

The Agilent E8361CNetwork analyzer provides general-purpose network analysis capabilities with optional software and/or hardware that can be customized to your application, such as multi-port, pulsed RF, etc.
The Agilent E8361C network analyzer has an unlimited number of display Windows that can be resized and rearranged, with each window displaying up to 24 active traces and 24 memory traces. The formats include: logarithmic or linear amplitude, SWR, phase, group delay, real and imaginary numbers, Smith's circle chart, polar coordinates 10 independent markers per trace, including reference markers for incremental labeling operations, and logarithmic or linear amplitude, phase, real, imaginary, SWR, delay, R + jX, and G + jB formats. With the Agilent E8361C network analyzer, you can define the test limit line displayed on the display for linear, CW (single frequency), power or segment scan testing.
Features:
10 MHz to 67 GHz
94 dB dynamic range and
TRL/LRM calibration, on-wafer, in-fixture, waveguide and antenna measurement
Mixer conversion loss, return loss, isolation and absolute group delay
Amplifier gain compression, harmonics, IMD and pulsed RF
