Product Description:

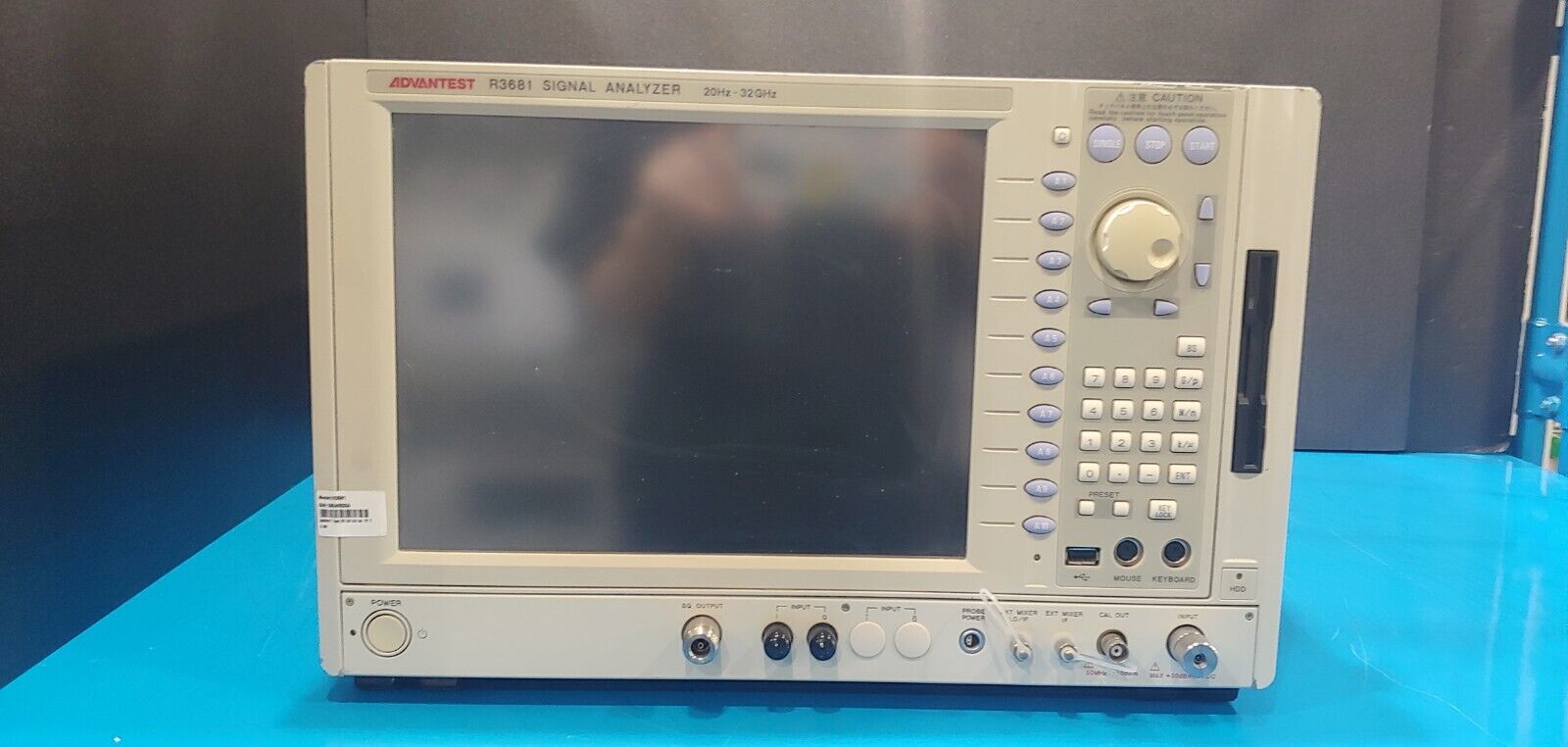

The Edwan Test R3681 is a new measuring instrument that meets the requirements of a new era of testing and measurement. The R3681 is a high performance signal analyzer. The R3671 and R3681 use our unique RF technology to achieve an average display noise level of -158 dBm, a third-order crossover point (TOI) specification of +26 dBm, and signal purity of -122 dBc/Hz, enabling measurements over a wide dynamic range.
The R3681 has a unique noise correction feature that enhances its dynamic range (-84 dBc [typical value]) for W-CDMA adjacency leakage power (ACLP) measurements. The R3681 comes standard with broadband modulation analysis (bandwidth 25 MHz) and RF measurement. By adding a dedicated signal analysis option for the corresponding communication system to the 3681, you can extend the capabilities of the transmitter tester. In addition, the R3681 is available with an optional RF signal generator that supports digital modulation, making it easy to achieve the best test system for evaluating high-frequency devices.
Features:
Frequency range: 20 Hz to 32 GHz
Wide dynamic range
Average display noise level: -158 dBm (typical @ 1 GHz)
1 dB compression point: +10 dBm (typical value, 200 MHz to 3.5 GHz)
Third-order intermodulation intercept (TOI) : +26 dBm (typical, 2 to 3.5 GHz)
