主要组件：

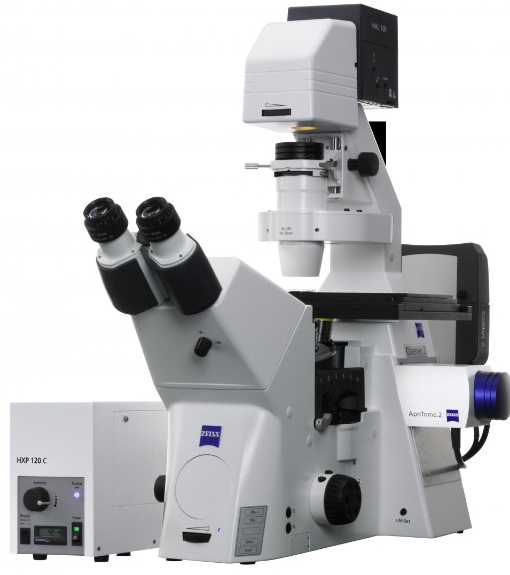

• 蔡司 Axio Observer Z1 主体。
• 目镜对：Pl 10x/23，带屈光度调节。
• 两个相机端口，帧两侧各一个。
• 六位电动物镜转盘，用于固定物镜。每个物镜开口下都有 DIC 槽。
• 电动聚焦。
• 电动冷凝器，零件号 424244。N.A. 0.55，WD（工作距离）26mm。包括三相环形和三个可插入 DIC 棱镜的开放空间。
• 电动反射器立方体转盘。最多可容纳 6 个立方体。
• HAL 100，卤素透射照明灯外壳。型号 42 30 00。

物镜：

• EC Plan-Neofluar.2.5 倍/0.075，无限远/0.17 毫米。零件# 420320-9901。
• EC Plan-Neofluar.10x / 0.3，Ph1，无穷大/-。零件# 420341-9911。
• LD Plan-Neofluar.20 倍/0.4，Ph2，科尔，无限远/0-1.5 毫米。校正环，用于调整培养皿的厚度。零件# 421351-9970。
• LD Plan-Neofluar.40 倍/0.6，Ph2，科尔，无限远/0-1.5 毫米。校正环，用于调整培养皿的厚度。零件# 421361-9970。

周边设备：

• 扩展坞中的 TFT 触摸屏显示。注意：这是缺少从屏幕到 Z1 框架背面的电缆。
• 电源 231.这是一个为 Z1 框架供电的外部电源盒。Vero Power 型号 VP231-2,100V/240V – 自动量程，50-60 Hz。CE 认证。具有连接到 Z1 框架背面的控制电缆。有正常的电源线到墙壁插座（包括电线但未显示）。

落射荧光照明器：

• 金属卤化物照明器。HXP 120 光纤照明源。单盒内置电源、灯模块和红外滤光片。具有电动亮度开关和由步进电机控制的快门。缺少从照明器背面到 Z1 框架背面的光纤电缆。我们有一根 X-Cite 光缆，我们在拍照时替换了它。由 LEj JENA GmbH 在德国制造。型号 LQ-HXP120-z / 100.26C。100-240 伏交流电，50-60 赫兹。
• Z1 背架上的适配器，用于安装 HXP 120 的光纤电缆。零件号 423302-0000。

荧光滤光片：

• 在反射器模块中包括 3 个滤光片组。状况就像新的一样，没有明显的磨损或照片漂白。我们可以根据需要自定义过滤器。我们可以提供任何类型的荧光滤光片组，因为我们是 Chroma 的经销商。请说明您的过滤器需求。

快门：

• 快门（高速，外部）。安装在激发照明路径中 Z1 框架的背面。零件号 423627-9901。
• 快门控制器驱动程序。Uniblitz 型号 VCM-D1。电压选择开关。由 Vincent Associates， Rochester NY 14625 制造。从快门驱动器到 Z1 框架背面的快门线丢失。有正常的电源线到墙壁插座（包括电线但未显示）。

电动 XY 载物台。

• XY 舞台。MarzhauserWetzlar GmbH and Co. 类型 SCAN IM 130×100 -1mm。货号 00-24-546-0000 / 432029-9901。Marzhauser.com。
• XY Stage 控制器步进器。LudlLEP MAC5000 73005020 PS-SYSTEM。由 LUDL Electronics 在纽约州霍桑提供。电压 90-260,50-60 赫兹。
• 用于电动 XY 载物台的操纵杆控制器。LEP LUDL Electronics p/n 73000362。描述： MA C2 XY JYSTCK DIGPT.
• Ludl 步进电机电缆，带直角插头（2 个），型号 000000-0445-551。包括两条从 LEP MAC5000 电源盒到 Marzhauser 电动载物台的控制电缆，一根用于 X 轴移动，一根用于 Y 轴移动。
• 包括三套不同的载物台安装框架，用于固定不同类型的培养皿和培养板。

摄影相机设备：

• 蔡司 AxiocamMRm。R3.0. 单色相机。零件号 426509-9901.蔡司售价超过 8400 美元.这是 firewire 版本。它缺少连接到计算机的火线电缆，但这是一件便宜的物品。
• 包括 C 接口适配器，60N-C 1“ 1.0x，编号 426114。
• 蔡司 AxiocamMRc.R3.1. 彩色相机。零件号 426508-9901。蔡司售价超过 6300 美元。这是 firewire 版本。它缺少连接到计算机的火线电缆，但这是一件便宜的物品。
• 包括 C 接口适配器，60N-C 1“ 1.0x，编号 426114。

计算机和软件：

• 电脑不包括在内。包括从 Z1 框架背面到计算机的电缆。用户需要购买 Zeiss Zen 软件才能通过计算机控制显微镜。Zen 软件还将操作 Axiocam 摄像机。电脑和软件不包括在内。

Main Components:

• Zeiss Axio Observer Z1 main body.
• Eyepiece Pair: Pl 10x/23 with diopter adjustment.
• Two camera ports, one on each side of frame.
• Six place motorized nosepiece turret for holding objective lenses. Has DIC slots under each objective opening.
• Motorized focusing.
• Motorized Condenser, part no. 424244. N.A. 0.55, WD (working distance) 26mm. Includes three phase annuli and three open spaces where DIC prisms could be inserted.
• Motorized reflector cube turret.Holds up to six cubes.
• HAL 100, Halogen transmitted illuminator lamp housing. Model 42 30 00.

Objective Lenses:

• EC Plan-Neofluar. 2.5x / 0.075, infinity/0.17mm. Part# 420320-9901.
• EC Plan-Neofluar. 10x / 0.3, Ph1, infinity/-. Part# 420341-9911.
• LD Plan-Neofluar. 20x / 0.4, Ph2, Korr, infinity/0-1.5mm. Correction collar to adjust for thickness of petri dish. Part# 421351-9970.
• LD Plan-Neofluar. 40x / 0.6, Ph2, Korr, infinity/0-1.5mm. Correction collar to adjust for thickness of petri dish. Part# 421361-9970.

Peripheral Equipment:

• TFT Touch Screen Display in Docking Station. Note: This is missing the cable from the screen to the back of Z1 frame.
• Power Supply 231.This is an external power supply box that powers the Z1 frame. Vero Power model VP231-2, 100V/240V – Autorange, 50-60 Hz. CE certification. Has control cable that goes to back of Z1 frame. Has normal power cord to wall outlet (cord included but not shown).

Epifluorescence Illuminator:

• Metal Halide Illuminator. HXP 120 fiber optic illumination source.Single box has built in power supply, lamp module, and infrared filter. Has motorized brightness switch and shutter that is stepper motor controlled. Missing fiber optic cable that goes from the back of illuminator to the back of Z1 frame. We have an X-Cite fiber optic cable that we substituted when taking the photos. Made in Germany by LEj JENA GmbH. Type LQ-HXP120-z / 100.26C. 100-240 VAC, 50-60 Hz.
• Adapter on back frame of Z1 to fit the fiber optic cable of the HXP 120. Part number 423302-0000.

Fluorescence Filters:

• Includes three filter sets in reflector modules. Condition is like new, with no apparent wear or photo bleaching. We can customize the filters as needed. We can provide any type of fluorescence filter sets since we are a dealer for Chroma. Please specify what your filter needs are.

Shutter:

• Shutter (high speed, external). Mounted to back of Z1 frame in the excitation illumination path. Part No. 423627-9901.
• Shutter Controller Driver. Uniblitz model VCM-D1. Volt selector switch. Manufactured by Vincent Associates, Rochester NY 14625. Missing cable from shutter driver to shutter on back of Z1 frame. Has normal power cord to wall outlet (cord included but not shown).

Motorized XY Stage.

• XY Stage. MarzhauserWetzlar GmbH and Co. Type SCAN IM 130×100 -1mm. Article No. 00-24-546-0000 / 432029-9901. Marzhauser.com.
• XY Stage controller stepper. LudlLEP MAC5000 73005020 PS-SYSTEM. By LUDL Electronics in Hawthorne NY. Voltage 90-260, 50-60 Hz.
• Joystick controller for motorized XY stage. LEP LUDL Electronics p/n 73000362. Description: MA C2 XY JYSTCK DIGPT.
• Ludl Stepper motor cable with right angled plug (qty 2), model 000000-0445-551. Includes two control cables from LEP MAC5000 power box to Marzhauser motorized stage, one for X and one for Y movement.
• Includes three different sets of stage mounting frames for holding different types of petri dishes and plates.

Photography Camera Equipment:

• Zeiss AxiocamMRm. R3.0. Monochrome camera. Part No. 426509-9901.Zeiss selling price over USD $8400.This is the firewire version. It is missing the firewire cable that goes to the computer, but that is an inexpensive item to obtain.
• Includes c-mount adapter, 60N-C 1” 1.0x, No. 426114.
• Zeiss AxiocamMRc. R3.1. Color camera. Part No. 426508-9901. Zeiss selling price over USD $6300.Carl Zeiss Microimaging GmbH. This is the firewire version. It is missing the firewire cable that goes to the computer, but that is an inexpensive item to obtain.
• Includes c-mount adapter, 60N-C 1” 1.0x, No. 426114.

Computer and Software:

• Computer not included. Cable to go from back of Z1 frame to computer is included. User will need to buy Zeiss Zen software for controlling the microscope via the computer. The Zen software will also operate the Axiocamcameras. Computer and software are not included.
