Product Description:

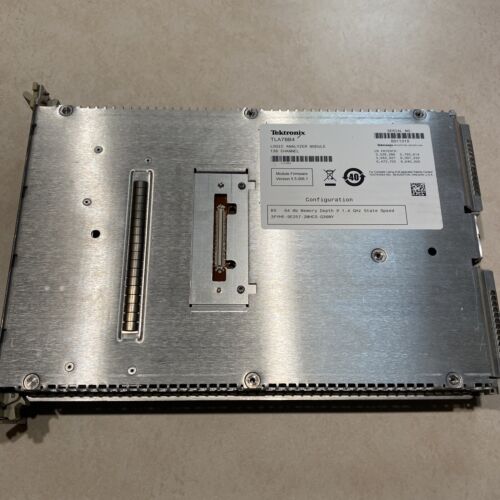

The TLA7Bxx series logic analyzer module offers Tektronix MagniVu technology, providing high-speed sampling up to 50 GHz, greatly changing the way logic analyzers work and enabling them to provide amazing new measurement capabilities. The TLA7Bxx module provides high-speed state synchronization capture, high-speed timing capture, and analog capture through the same set of probes. They utilize MagniVu technology to provide up to 20 ps of timing, fault, and set/hold triggers on all channels, as well as always displaying and timestamps at a resolution of up to 20 ps. 136 channels (4 clock channels, 4 qualified channels).
characteristic:
-
68/102/136 channel logic analyzer with a recording length of up to 512 Mb
-
Malfunctions and settings/maintenance trigger and display elusive hardware issues discovered and displayed
-
Transitional storage prolongs the signal analysis and capture time for frequently transitioning signals
-
By using the same probe to locate faults that are difficult to detect, synchronous status, high-speed timing, and simulation analysis can be achieved
-
By viewing time related data in multiple display formats, real-time tracking of issues across multiple modules, from symptoms to root causes
-
Comprehensive PCI Express detection solution, including mid bus, slot sockets, and soldered connectors
-
Modular mainframes provide flexibility and scalability
-
Wide support for processors and buses
