Product Description:

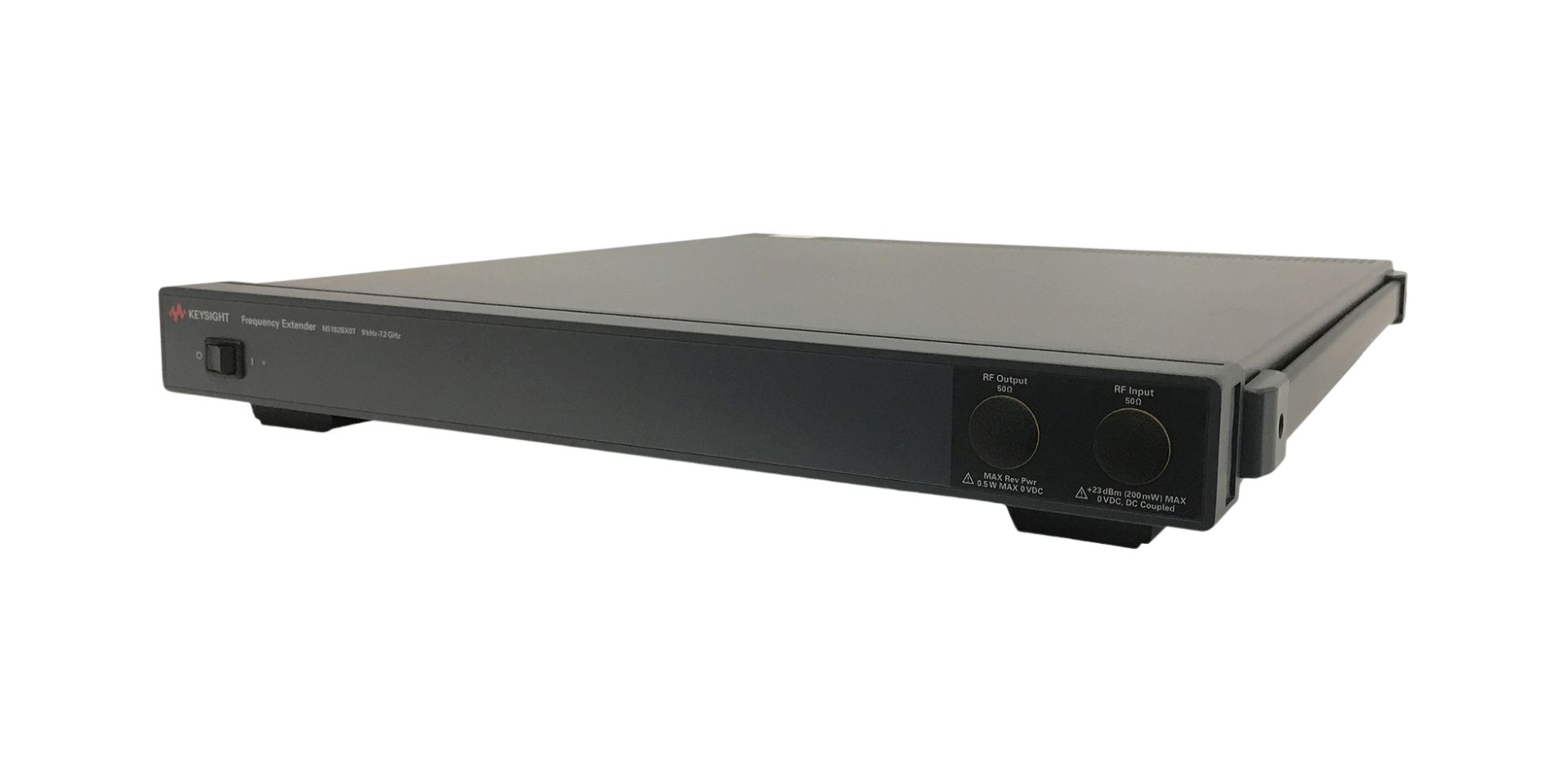

The N5182BX07 amplifiers extend any N5182B MXG or N5172B EXG with Option 506 to cover 802.11ax bands up to 7.2 GHz and 5G license-free bands with excellent error vector amplitude (EVM).
The N5182BX07 amplifiers extend any N5182B MXG or N5172B EXG with Option 506 to cover 802.11ax bands up to 7.2 GHz and 5G license-free bands with excellent error vector amplitude (EVM). Push your equipment and design to the limit with the N5182BX07 Frequency Extender.
Features:
Provides a single RF output for full frequency coverage from 9 kHz to 7.2 GHz and a modulation bandwidth of 160 MHz
Control as usual from the MXG/EXG front panel and automate the test system using the same SCPI commands via LAN, GPIB, or USB
Generates 802.11ax 160 MHz bandwidth signals at 7.2 GHz and achieves excellent EVM performance of <-47 dB (0.45%) at output power of up to +5 dBm
