Product Description:

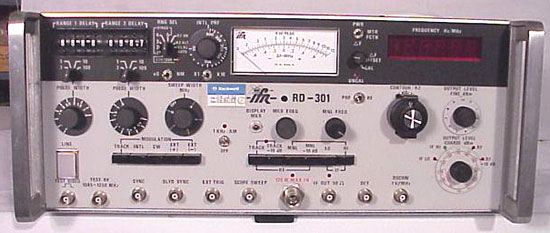

The RD301 radar test unit is designed for precision simulator testing of aircraft weather radar and narrow-pulse Marine radar instruments. It is a fully integrated unit that allows testing of conventional radar functions via tester and external oscilloscope. The RD-301 is connected to the unit under test (UUT) via a serial coaxial cable, waveguide coupler, and virtual load. The test unit can respond to radar inquiry pulse widths of 50 ns to 30 s over a frequency range of 9295 MHz to 9500 MHz.
Features:
Automatic transmitter magnetron frequency tracking and digital reading
Built-in PRF generator and digital reading
Built-in IF scan generator from 20 to 70 MHZ and mark generator for IF and AFC testing
Radar UUT sensitivity test
