Product Description:

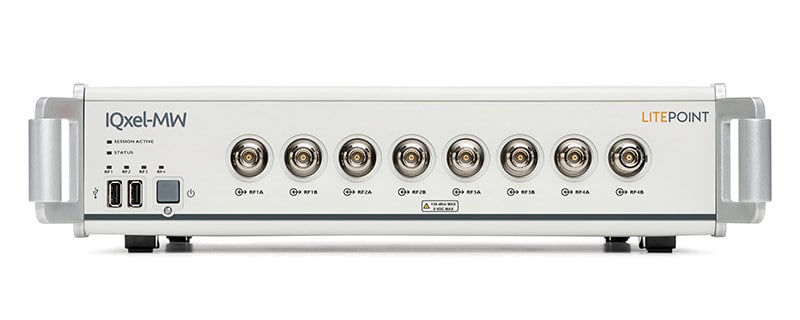

The IQxel-MW 7G is a wireless tester with a frequency range of 400 MHz to 7300 MHz. It can be used to test cellular technologies (2G, 3G, 4G, 5G), LPWAN technologies (LoRa, Sigfox), Bluetooth, and Wi-Fi 6/6E in the 2.4, 5 GHz and 6 GHz bands. The tester meets the requirements of the IEEE 802.11ax (Wi-Fi 6) and 802.11ac (Wi-Fi 5) specifications and tests all IEEE 802.11 legacy specifications. It natively supports 160 MHz per port, 80+80 MHz, and future 160+160 MHz signal combinations. It provides superior residual EVM performance for 1024 QAM and supports single-user OFDMA, flip-flop based testing multi-user OFDMA, uplink and downlink testing, and easy to edit RU assignment, Wi-Fi 6 carrier frequency offset (CFO), and power and timing control verification.
The IQxel-MW 7G supports both TDD and FDD non-signaling test modes. It also supports 5G NR-U testing and Wi-Fi and cellular co-existence testing. This test box comes with the IQsniffer (Wi-Fi Traffic Sniffer) option. The integrated vector Signal generator (VSG) and Vector Signal Analyzer (VSA) enable comprehensive transmitter and receiver testing over 200 MHz IF bandwidth. The test system also features an integrated signal trigger with a RF and video range of -40 dBm and level accuracy of +/ -2 dB.
Features:
Flexible hardware configurations are available, ranging from 400 MHz to 7.3 GHz in standard configurations and up to 6 GHz in configurations with flexible scalability to 7.3 GHz.
Meet IEEE requirements for 802.11ax (Wi-Fi 6) and 802.11ac (Wi-Fi 5) specifications and test all IEEE 802.11 legacy specifications
Native support for 160 MHz and 80+80 MHz per port
Excellent residual EVM performance for 1024 QAM
