Product Description:

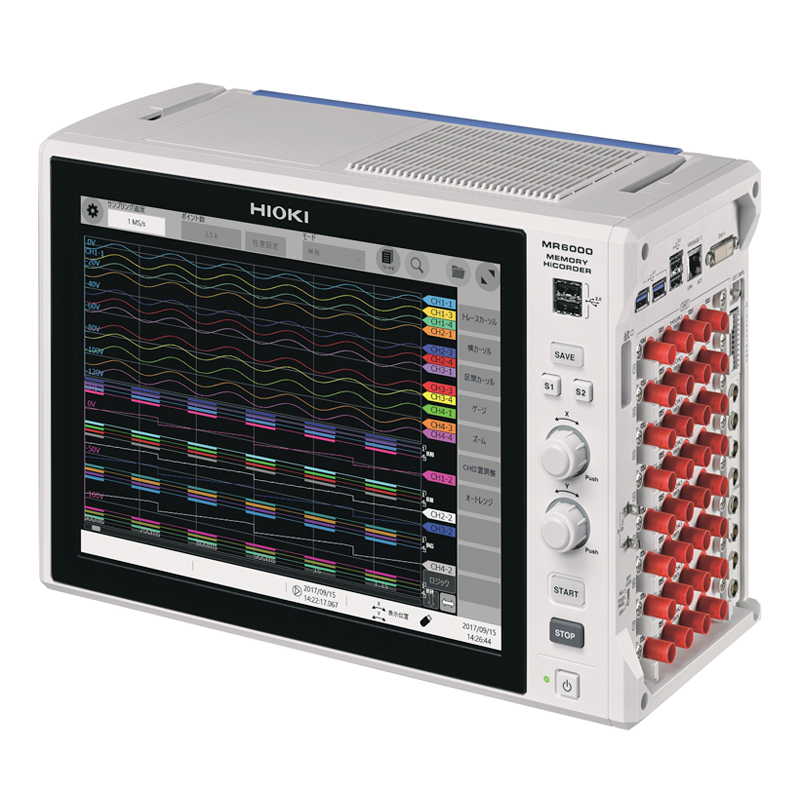

With the ability to simultaneously measure insulation data across 16 channels while maintaining speeds of 200 MS/s, the MR6000 can measure high-speed, high-voltage signals in inverter performance tests more accurately and safely than ever before.
The MR6000 is the first Memory HiCorder Concierge in history to offer a Memory HiCorder Concierge, a powerful feature that automatically detects the characteristics of a user's pre-set base waveform and then automatically searches all measurements for waveforms with low similarity to the base waveform. To indicate potential exceptions. Due in part to the large amount of measurement data generated in typical applications, this new feature significantly increases productivity.
Features:
Not only insulation measurement, but also all 16ch simultaneous 200MS/s high-speed measurement (analog unit U8976×8)
Equipped with 8 input slots, maximum analog 32ch insulated input (analog cell U8975×8)
Unprecedented installation of all slots, up to 128ch logic (logical unit 8973×8)
Built-in 256GB SATA-SSD (optional), etc., can be used USB flash drive or SD memory card
Abundant input units for temperature, strain, frequency, etc
