Product Description:

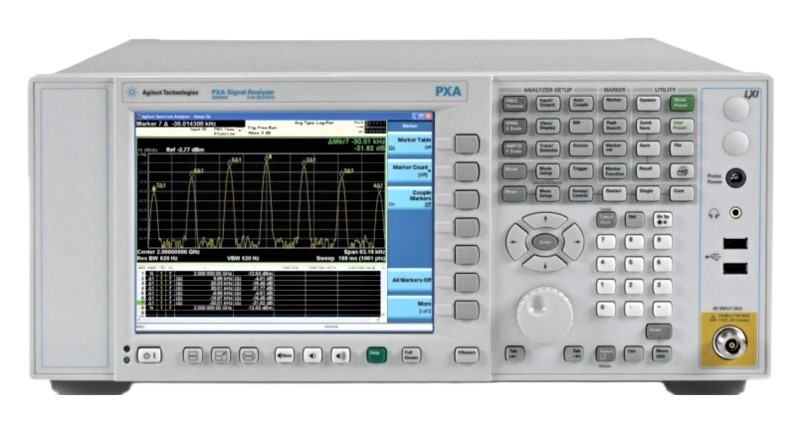

The N9030A PXA Signal analyzer is the highest performing product in the Keysight X series of signal analyzers and an evolutionary replacement for your current performance signal analyzers. It offers frequency coverage up to 26.5 GHz and ensures flexibility now and in the future with optional measurement features and hardware scalability. PXA's advanced performance, flexibility, functionality, and scalability enable you to meet demanding applications in aerospace, defense, commercial communications, and more. In addition, the PXA includes extensive remote language compatibility capabilities that make it easier to replace existing Agilent high-performance spectrum analyzers.
As the flagship of the X-Series signal analyzer, the Keysight N9030A PXA signal analyzer delivers superior performance, reducing measurement uncertainty and providing a spurial-free dynamic range of up to 75 dB at 140 MHz analysis bandwidth, revealing a higher level of signal detail. Industry-leading specifications include -129 dBc/Hz phase noise at 10 kHz offset (1 GHz), ±0.19 dB absolute amplitude accuracy, and -172 dBm display average noise level (DANL) at 2 GHz Sensitivity (using preamplifiers and background noise spreading techniques).
Features:
3 Hz to 3.6, 8.4, 13.6 or 26.5 GHz
10 MHz (standard), 25, 40 or 140 MHz analysis bandwidth
12 markers, marker stations and synchronization detectors
Configuration options for PXA instrument hardware
