Product Description:

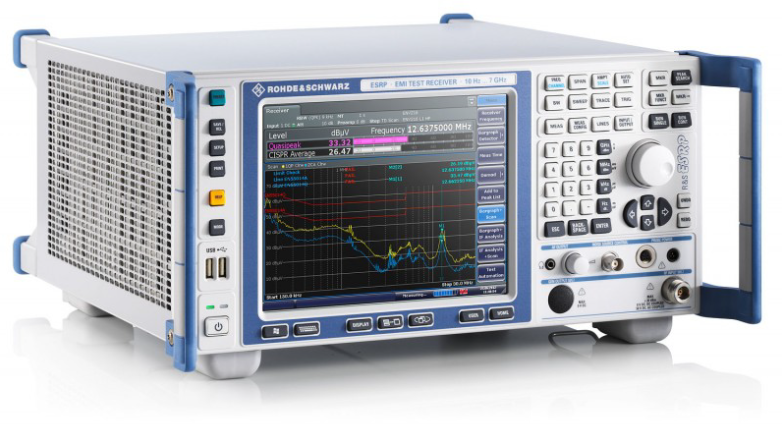

The R&S®ESRP EMI test receiver is designed for diagnostic measurements and pre-conformance measurements during development in preparation for final certification testing. It uses traditional step frequency scanning or FFT-based time domain scanning to measure electromagnetic interference in the frequency range of 10 Hz to 7 GHz, which significantly speeds up the measurement. At the same time, the R&S®ESRP is a full-featured and powerful signal and spectrum analyzer for laboratory applications. The R&S®ESRP has a simple menu structure, combined with an intuitive touch screen, which makes the test receiver extremely easy to operate in any mode.
The R&S®ESRP EMI test receiver uses FFT-based time-domain scanning to perform EMI measurements in a fraction of the time that used to take several hours to complete. This significantly reduces the time and cost of product development and preparation for final certification. The optional preselection function prevents front end overload and ensures repeatability of results. The R&S®ESRP has proven features, such as IF analysis for displaying the spectrum around interference signals, or three-dimensional spectrograms in analyzer mode to help users analyze interference signals. The neat and orderly menu structure makes it easy to navigate to the desired function or setting.
The instrument can display up to six different traces simultaneously on its 21 cm (8.4 ") touch screen for fast and efficient analysis of results. The R&S®ESRP is also suitable for mobile applications with its compact size, light weight, optional reinforcement housing and optional DC power supply.
Features:
The EMI test receiver and signal/spectrum analyzer are combined in one box
The resolution bandwidth conforms to CISPR standards
Weighted detectors: maximum peak, minimum peak, average, RMS, quasi-peak, average with meter time constant, and RMS compliant with the current CISPR 16-1-1 version
Very fast time domain scanning based on FFT (optional)
Automatic test program
