Product Description:

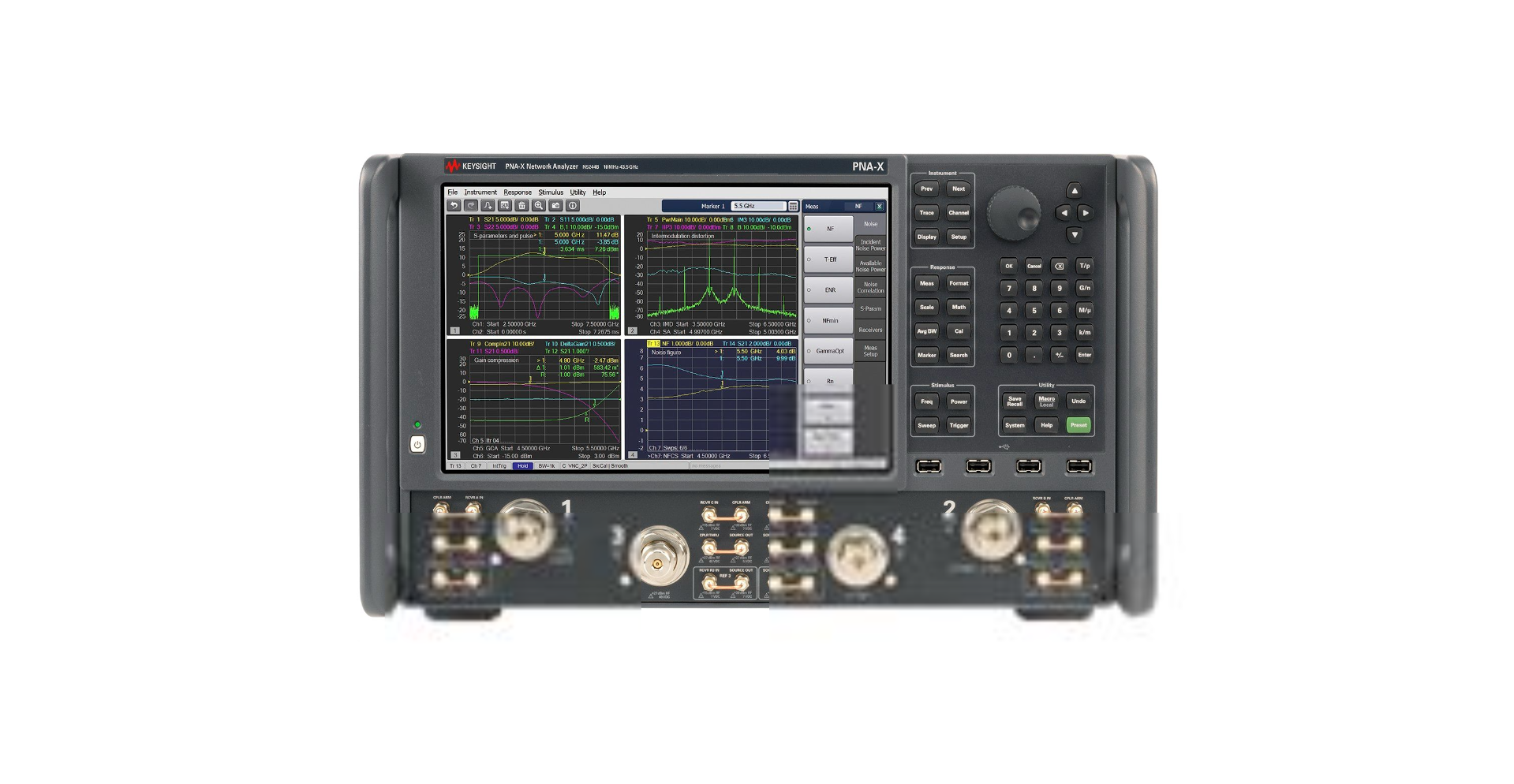

Keysight N5244B is a PNA-X vector network analyzer that covers the frequency range from 900 Hz/10 MHz to 43.5 GHz, with a dynamic range of 124 dB and harmonics of -60 dBc. The N5244B provides excellent measurement integrity, allowing you to gain a deeper understanding of the characteristics of the device under test, resulting in a better design. On the production line, these products provide the throughput and repeatability you need to turn great design into competitive products.
The PNA-X analyzer is more than just a vector network analyzer, they are also a full-featured and flexible microwave test engine when it comes to measuring active devices such as amplifiers, mixers and inverters. Its hardware includes two internal signal sources, a signal combinator, S-parameter and noise receivers, pulse modulators and generators, and a set of switches and RF access points. These hardware provide a powerful core for making a variety of linear and nonlinear measurements, all of which can be performed simply by connecting to the device under test via a set of connections.
Features:
Signal source output power: +13 dBm (1 GHz), +11 dBm (67 GHz)
Wide dynamic range: up to 134 dB (20 GHz) at test ports
Low trace noise: 0.002 dB rms (1 kHz bandwidth)
Receiver background noise is low
Receiver compression level is high
