Product Description:

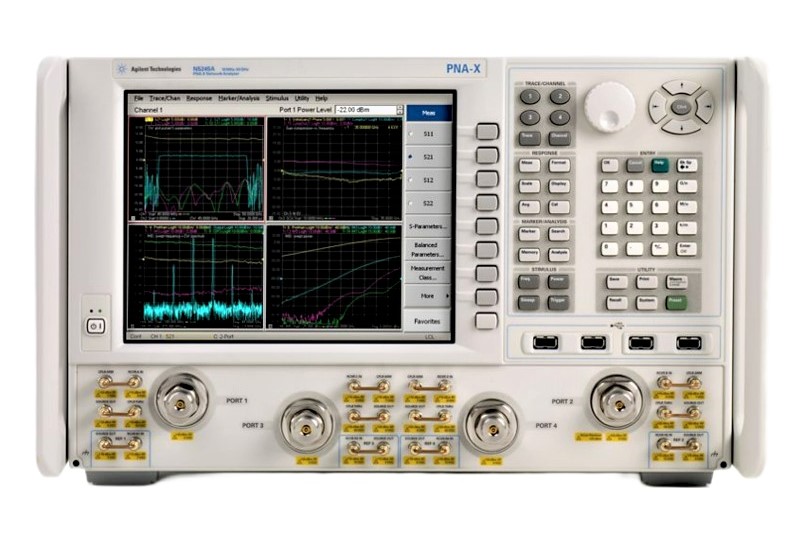

The Agilent N5245A network analyzer offers a wide range of measurement applications for amplifiers, inverters, antennas or mixers through a single connection. Keysight N5245A also has a second built-in signal source, combiner and internal signal routing switch, which is configurable.
The Agilent N5245A PNA-X network analyzer allows users to replace racks and stacks with one instrument. The Agilent N5245A PNA-X network analyzer combines two internal signal sources, a signal router, S-parameter tester and noise receiver, pulse modulator and signal generator, and a flexible set of switches and RF access points to provide a powerful hardware core for a variety of linear and nonlinear measurements. All of this is achieved through a set of devices connected to the device under test (DUT).
The N5247A offers a high power source and the best linear receiver (at the time of product launch), enabling the most accurate S-parameter measurements over the widest power range on the market.
Features:
10 MHz to 50 GHz
2-port or 4-port with two built-in sources
121 to 125 dB system consensus range and 133 to 137 direct receiver dynamic range (depending on configuration)
High output power 13 dBm (+16 dBm optional),
Low harmonics (-60 dBc) and wide power sweep range
Trace noise: 0.002 dBrms
Background noise: -111 dBm
