Product Description:

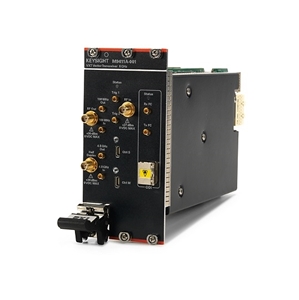

The Keysight M9410A is a PXIe Vector transceiver (VXT) that operates in the frequency range 380 MHz to 6 GHz. It features broadband wide support up to 1.2 GHz and, combined with a high-performance millimeter wave transceiver head, delivers best-in-class error vector amplitude (EVM) and adjacent channel leakage ratio (ACLR) performance on FR1 and FR2. VXT offers up to 20 dBm output power with excellent SSB phase noise of -131 dBc/Hz at 1 GHz (10 kHz offset). It supports multi-channel timing synchronization and phase coherence.
Features:
-
With up to 1.2 GHz signal generation and analysis bandwidth, it can meet the needs of 5G advanced testing.
-
Better RF performance in its class, including output power, phase noise and amplitude accuracy, provides greater test margin for design validation and production testing
-
Support a wide range of applications using the same measurement applications as the benchtop instruments, including PathWave signal generation software, X-series measurement applications, and vector signal analysis software
-
Multi-channel (MIMO) and multi-site testing can be performed during the design validation and production phases
-
With the S9101A 5G multi-band vector transceiver, the frequency range can be extended to millimeter wave (FR2)
