Product Description:

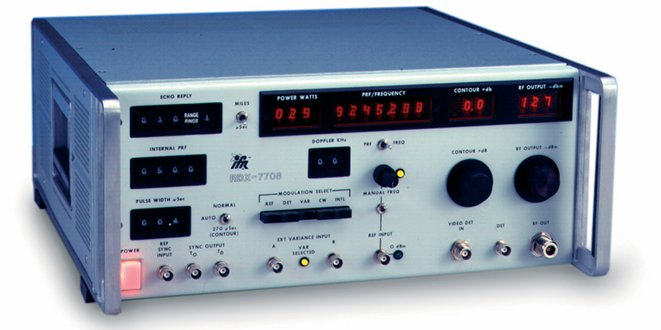

The RDX-7708 test unit provides an RF source and monitor for complete RF testing of the ARINC 708 TR(transmitter/receiver) unit, including wind shear. The transmitted power is measured by mounting an RF power module through a waveguide. This method minimizes measurement errors due to changes in RF coaxial cable losses.
Features:
-
Range response can be selected in 1us or 1 mile increments
-
The RF output is adjustable in 1 dBm increments to -127 dBm
-
Contour boost increments from 0.1 dB to +20 dB
-
Built-in variance modulator
