Product Description:

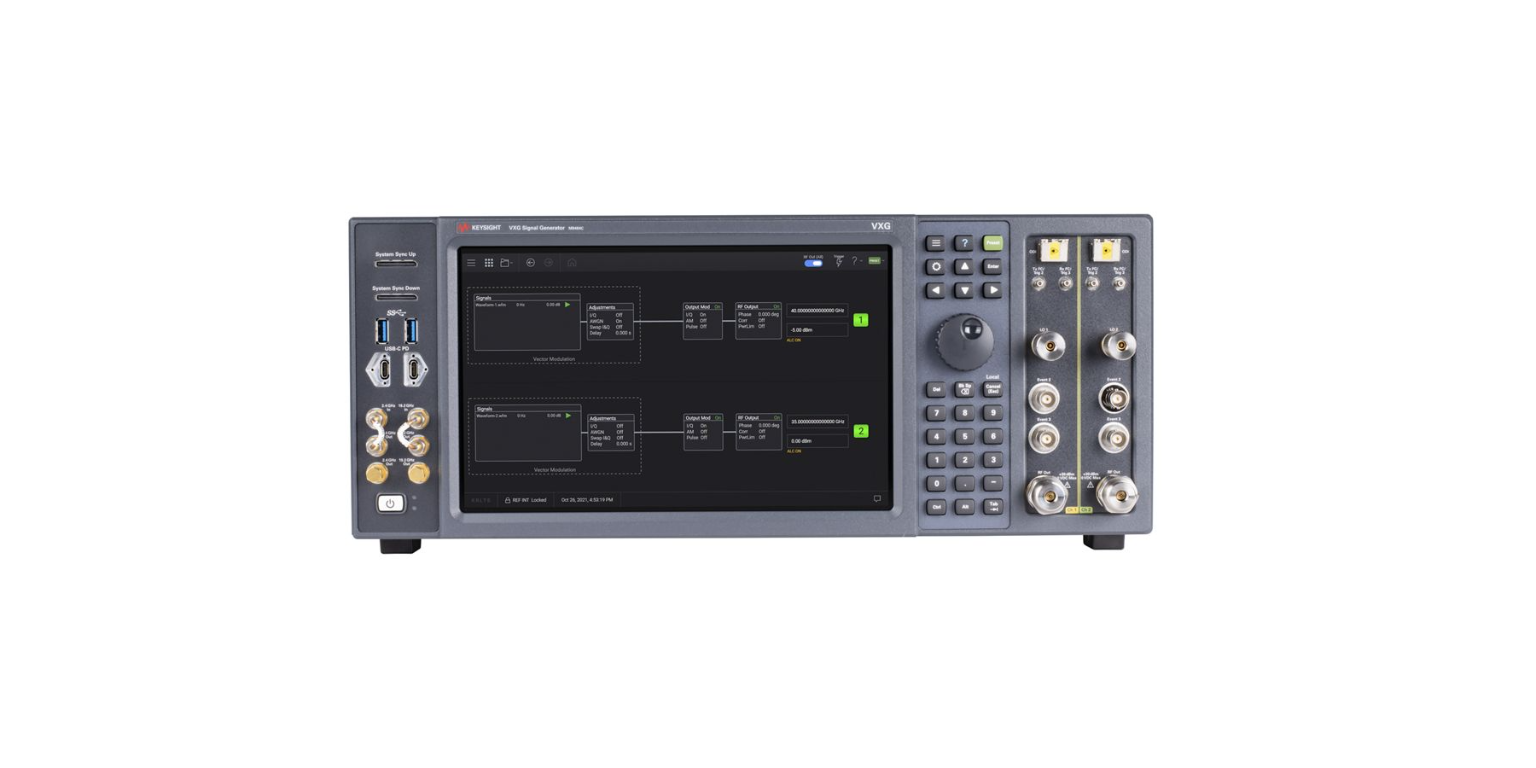

The M9484C VXG is Keysight's first vector signal generator, providing 2.5 GHz modulation bandwidth on each channel and capable of generating signals up to 54 GHz. This VXG vector signal generator forms a fully integrated, calibrated and synchronized solution to help you test the next generation of wireless technologies, such as 5G and satellite communications, faster.
When designing 5G and satellite communication systems, strict design margins and tight schedules, complex modulation schemes and strict standard requirements are all factors that designers must carefully consider. You face a whole new set of design and test challenges, including wider bandwidths, higher frequencies and more complex systems. The M9484C VXG is the first vector-signal generator that can provide a frequency range of up to 54 GHz and a modulation bandwidth of 2.5 GHz in a single instrument. The frequency range can be extended to 110 GHz with the V3080A spread spectrum. Using channel binding technology, you can extend the modulation bandwidth to 5 GHz, helping you achieve the next technological breakthrough
Features:
-
In combination with PathWave signal generation software, MIMO real-time fading can be provided for all 3GPP 5G NR base station conformance tests
-
Coverage of all 5G NR bands and V/W bands used for satellite communications
-
Generate complex broadband signals required for carrier aggregation and digital predistortion (DPD) applications
-
Provides excellent RF performance for accurate characterization of the device under test, such as phase noise, error vector amplitude (EVM) and adjacent channel power ratio (ACPR)
-
Up to 4 synchronous and phase-coherent channels can be provided on a single instrument, and more than 32 channels can be provided on multiple instruments, simplifying MIMO and beamforming test systems
-
The ability to simulate eight virtual signals on each RF channel significantly simplifies complex receiver test scenarios
