Product Introduction:

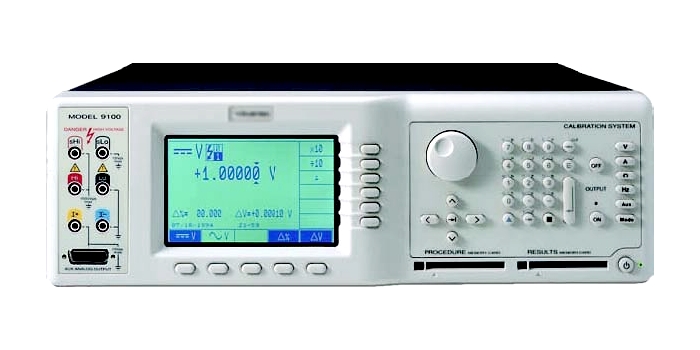

Wavetek9100 Multi-function calibrator, AC/DC/Ω mode, conductance, capacitance, frequency, thermocouple, PCMCIA reader, AC and DC range: 0 to 1050 V, 10 Hz to 100 KHz, current: 0 to 20 A, resistance: 0 to 400 MΩ, GP-IB programmable.
The economical, versatile 9100 is used to calibrate a wide range of portable meter workloads, including: Handheld multimeter, table multimeter, pointer meter, panel meter, clamp meter, power meter, harmonic analyzer, oscilloscope, oscilloscope, test tools, frequency meter, electronic thermometer, chart recorder, waveform recorder, XY recorder and data collector, etc.
Features:
-
AC/DC/Ω mode, conductance, capacitance, frequency, thermocouple,
-
AC/DC 0 to 1050V,
-
Operating frequency 10Hz to 100KHz,
-
Conductivity 2.5 millisiemens,
-
PCMCIA reader,
-
Current 0 to 20A ET & 1000A A Using coils,
-
Resistance 0 to 400 MΩ,
-
Thermocouple B, C, E, J, K, L, N, R, S, T, temperature -250°C to +2320°C,
-
RTD Pt385, Pt392, 10Ω to 2kΩ, temperature -200°C to +850°C,
-
Fully programmable GP-IB.
